Wooden Case 0.01~0.02 (mm) Ruite Stone Cutting Machine Diamond Wire Saw

Product Description

Specification

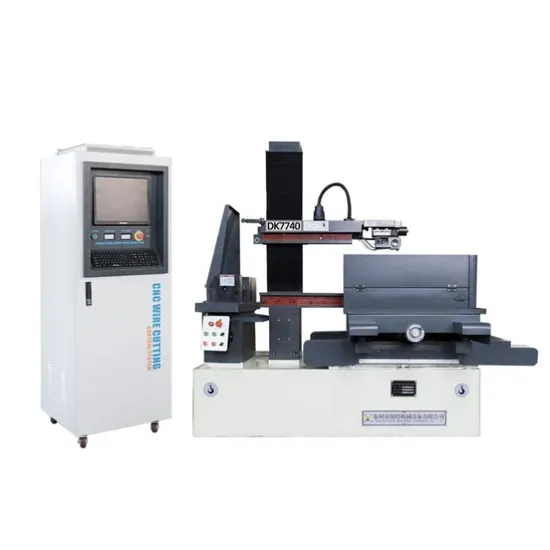

Product Informations Taizhou Ruite Machinery Equipment Co., Ltd. produces whole series of DK77 CNC edm wire cutting machines,which adopts high precision V-shaped guide rail(Linear guide rail optional) and P3-grade high precison ball screw. The products have high quality, complete models, long service life and high precision. Machine specifications can be customized according to customer needs,like non-standard models DK7740(45)F,DK7750(55)F,DK7763F,DK7780F,DK77100F,DK77120F or even larger models.
The company also produces ±30°, ±45° swing large taper machines and CNC high-precision middle speed edm wire cutting machines(Precision≤±0.005mm,roughness≤1.0μm). The following are the main parameters of DK77 series machines:
1.Standard maximum cutting taper:±6°/80mm;(±15°,±30°,±45° are optional)
2.Precision ≤ 0.02mm,according to GB7926-2005 standard;(If linear guide equipped, the precision can reach 0.01mm)
3.Best surface roughness ≤ Ra2.5μm(single-cut),Ra1.5μm(multi-cut);
4.Molybdenum wire diameter:0.1-0.2mm;
5.Max. cutting speed≥120mm^2/min;
6.Voltage:3 phase 380V(single phase 220V,3 phase 220V or other voltage can be customized),Power:1.5KW;
7.Working fluid:Water-based emulsion.

Model	Worktable travel(mm)	Worktable size(mm)	Max. cutting thickness(mm)	Max. load(kg)	Dimensions(mm)	Weight(kg)
DK7720	200*250	490*380	200	100	1200*900*1300	800
DK7725	250*320	520*390	300	200	1450*900*1500	1000
DK7735(32)	350(320)*450(400)	730*490	500	300	1400*1100*1600	1100
DK7745(40)	450(400)*550(500)	810*570	400	500	1600*1200*1600	1400
DK7745F(40F)	450(400)*630	950*600	400/600	600	1600*1580*1600	1600
DK7755(50)	550(500)*650(630)	950*650	700	700	2000*1500*1900	1800
DK7755F(50F)	550(500)*800	1140*650	700	700	2000*1650*1900	2000
DK7763	630*800	1140*750	700	1000	2100*1700*2050	2400
DK7763F	630*1000	1350*750	700	1200	2250*1850*2050	2800
DK7780	800*1000	1350*980	900	2000	2400*1900*2350	4000
DK7780F	800*1200	1600*1050	900	2400	2550*1950*2400	4500
DK77100	1000*1200	1600*1100	1000	2600	2850*2500*2500	5200
DK77100F	1000*1400	1800*1250	1000	2800	2950*2050*2500	5800
DK77120	1200*1400	1800*1350	1000	3000	3050*2750*2500	7500
DK77120F	1200*1600	2000*1500	1000	3500	3100*2850*2500	8400
DK77160	1600*1800	2000*1700	1000	4000	3250*3000*2500	10000

Products Description
The Sample Shows
Applicable Industries Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Energy & Mining, Construction works
Hot Sale Items
Company Profile
Taizhou Ruite Machinery Equipment Co., Ltd, specializing in the research and development, testing, manufacturing, and sales of edm wire cutting machine, edm drilling machine, middle speed edm wire cutting machine, molybdenum wire, machining center, edm die sinking machine, jade wire sawing machines and electrical processing equipment.
Ruite covers an area over 15000, has passed CE certification, BV certification, ISO9001. etc.
Innovative Ruite CNC is committed to providing customers in various industries with overall solutions for wire cutting, including customized production of machine tools, installation and life-long technical services, to achieve a win-win situation between enterprises and users. The company's "Ruite" DK77 series of medium and fast wire cutting machine tools are known for "large taper, large stroke, high efficiency, high precision, new structure, low loss, more energy-saving, and more environmentally friendly".
The products are selling well in Europe and America. We sincerely welcome people from all walks of life to come and visit.
Exhibition
Certifications
CE Certificate
BV Certificate
ISO 9001
Chinese Itegrity Entrepreneur
Value Service And Credit Enterprise
Value Quality And Credit Enterprise
Our Partners
Packaging & Delivery
FAQ
Q1:What information do you need before making quotation? A:Worktable size or table travel you need.Surface roughness and cutting speed requirements. Q2:How to choose the machine I want? A:Firstly,please correspond to the worktable travel and cutting thickness according to the size of the workpiece to find a suitable model; Secondly,please check if precision and roughness meet your requirements;(Our TRS series machines have much higher precision and better finish) Q3:What should I do to start a new business in EDM wire cutting machine area? A:Please contact us immediately,we provide free pre-sales consultant service of brass slow wire EDM cutting machine. Q:Why choose you?What is the difference between you and other Chinese supplier? A:We have specialized in this area for over 20 years.Our EDM wire cutting machines are exported to Russia, India, UAE,South Korea, Canada, Vietnam, Thailand, Mexico, Turkey and etc. You can get higher quality product & better professional service from Ruite with same price. Q3:I`m worried about after-sales service! A:Warranty is one year. Any parts damaged during warranty will be replaced for free! We provide spare parts for life time at cost price. Electrical parts such as boards and servo drives,we`ll provide them for life time as well at cost price. Our engineers are available to service overseas!

---
