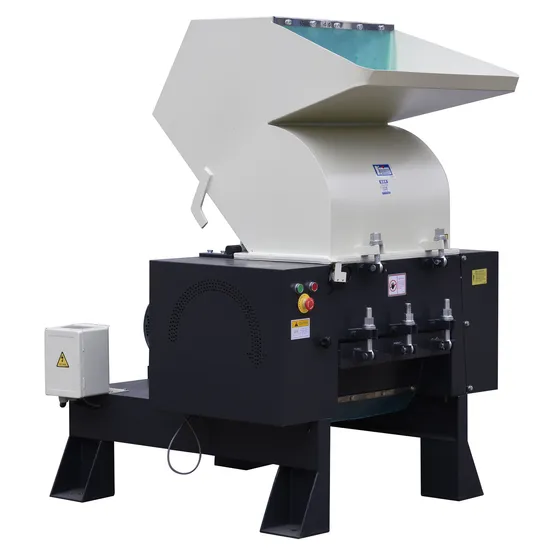

China Blade / Knife Material D2/ SKD-11/ 6crw2si/ 55sicr Plastic Granulator/Plastic Crusher for ABS Material

Product Description

Product Description
Standard blade bed is suitable to crush normal board marterial; Tube material; Form marterial and plastic material such as packaging box and wrapping. The knife tool is refined with imported special tool-steel, the clearance between Knife tools are adjustable, when it becomes blunt by using, it can be dismounted Repeatedly, it is durable. Use high-intensity steel screws to fasten the knife leaf and knife seat, having strong Bearing capacity. All walls of crushing chamber are treated by sound-proof, so having extra-low noise. A discount-type designed, the bunker, main body, screen can be dismounted for cleaning Easily. The electric motor has over-loading protection with power source interlock protection Device. Double-safety protection for operators and electric motor. Step-type motion knife design with strong breaking capacity.

Model	XFS-180	XFS-230	XFS-300	XFS-400	XFS-500	XFS-600
Power(kw)	2.2	4	5.5	7.5	11	15
Quantity of rotating blades	9	6	9	12	15	18
Quantity of fixed blades	2	2	2	2	2	4
Screen size(mm)	Φ 8	Φ 8	Φ 10	Φ 10	Φ 10	Φ 12
Weight(kg)	240	340	480	660	900	1400
Max. breaking capacity (kg/hr)	100-150	150-200	200-300	400-600	500-700	600-800
Size of feeding inlet(mm)	180× 136	230× 170	300× 210	400× 240	500× 300	600× 310
External size(mm)	730× 440 × 900	1000× 700 × 1050	1100× 800 × 1200	1300× 900 × 1400	1450× 1050 × 1500	1500× 1250 × 1720

Hot Product
Company Profile
Packaging & Shipping
FAQ
Q: About your factory ?
A: Our engineers have 20 years of industry experience , committed to injection molding peripheral and refrigeration industry automatic integration of Equipment Research and development .
Q: About the product information and whether to support OEM ?
A:We accept OEM of this series of products , please contact me for more product data .

Q: About the warranty on the product ?
A: Our professional engineers communicate with video and offer an one-year warranty (due to product quality issues) .

Q: About time of delivery and mode of delivery ?
A: Delivery Period 10-20 days , support factory delivery and FOB .

Q: About the terms of payment ?
A:Delivery by 100% payment before departure , T / T , L / C , Western Union and other international payment methods .

---
