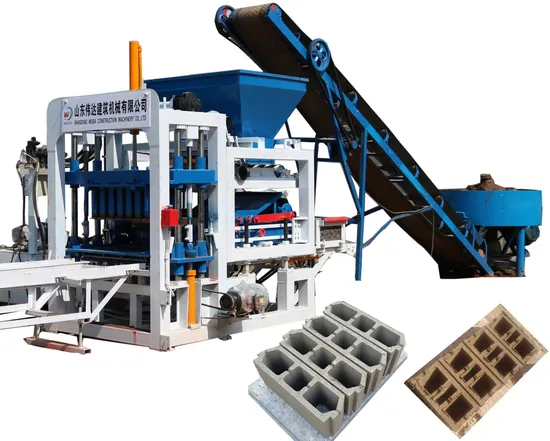

Qt4-15s Concrete Cement Sand Hollow Paving Stone Brick and Block Making Machine

Product Description

QT4-15S concrete cement sand hollow paving stone brick and block making machine
Product Description
Features:
1) New design, simple structure, easy in installation and operation.
2) High vibration ensure high density of the finished products, suitable for solid bricks and pavers.
3) Reasonable raw material ratio can produce high strength standard brick, after forming, can stack immediately.
Product Parameters

Affordable Automatic Qt4-15S Concrete and Cement Sand Hollow Paving Stone Brick and Block Making Machine production line
QT4-15 brick making machines sale in kenya making machine concrete block used presses ecological bricks Mian Technology Parameter
Dimension		3700x2100x2300mm			Weight			4500KG
Forming cycle		15-20S			Hydraulic pressure			16Mpa
Power		21.5KW			Model			QT4-15S
Pallet size		880x550x25mm			Mixer model			JQ500
Production requirement
Area		2000m²			Worker			4-6person
Workshop		50m²			Water consumption			4Ton/day
Material store workshop		300m²			Pallet quantity			1200
theoretical capacity:
Item	Block		Size(mm) L*W*H	Cycle time		Qty/Mould	Qty/Hour		Qty/8Hr
Hollow block			400-200-200mm	15S		4	720-960		5760-7680
Hollow block			400-150-200mm	15S		5	900-1200		7200-9600
Hollow block			400-100-200mm	15S		7	1260-1680		10080-13400
Solid bricks			230-110-70mm	15S		18	3240-4320		25920-34560

Block samples
Different shapes of colored Pavement Bricks, Cement hollows Blocks and solid brick with kerbstone blocks
production by one machine only
For the block production formula as followed just for reference :
8-10% cement, 30-40 % sand , 50-60% crushed stone. 8-10% cement, 30% flyash, 60% sand or stone powder
QT4-15 can make all of above blocks by changing the moulds, we can also customize the moulds according to your block size.
Programme PLC with motor electronic parts

• The Block making machine product process is controlled by PLC and fitted with remote control device.for PLC
control system,we usually use Japan Mitsubishi or Germany Siemens Brand

• The electricity motor for Cement Block Machine ,we use German Siemens motor,for other parts,we use CE motor .
• about the switches ,we will use France brand or China CHNT
Cement Block Machine loading photos
Pavement Cement Block Machine in client production site
• Rakes in several rows make sure raw concrete materials fed well-distributed.
• Hydraulic components we use Taiwan Yuken famous brands.
• The demoulding synchronizer avoids the damage to cement blocks.
• The vibration system for concrete kerbs contains two part ,one is up-moild vibbration box ,
it is electricity motor to supply the power for up-mould vibration box. And the down mould ,
there have one big vibration. when the scatter material work finish ,
the hydraulic power with the two vibration force will assure the good density of Hollow Cement Block Machine,
solid pavers blocks and concrete kerbs..etc
Shandong Weida Construction Machinery CO., Ltd is located in Linyi City, Shandong Province,
China.With RMB 16 million investment and 53,000 square meters area, We are always developing
good and realiable Cement Block Machine, AAC block machine...etc with other
Construction machinery with international standards to meet clients demands(people-oriented,
leading technology, winning quality, and serving user ). We had exported to more than 100 countries.
We have more than 60 technician to ensure superior installations and after sale service to
assist clients to install the machine and perfrom the proper training abroad.
We warmly welcome customers from all over the world come to visit our factory and discuss
long term cooperation.
we are 24 hours service on you!
Thank you !

FAQ

1> Is this block machine suitable for us to use? Answer:Could you please tell us what kind of bricks do you want to make? And the capacity you want? Let us check if it can meet your request. 2>Which industry did this block machine usually be used in? Answer: Interlocking bricks, Hollow bricks, Paving bricks,Solid bricks,etc 3>How to use the block machine? Answer: We will send the operating manual to you after you purchase the machine, for bigger machine, we can offer engineer fly to your side for installation and training your workers. 4>How about the after sale service of block machine? Answer: 2 year guarantee for the whole machine (without the spare parts). 5>what's your payment term our common payment is 30% deposit by T/T before arrange the machine production,70% balance before the delivery,if other payment term,we can negotiation.

---
