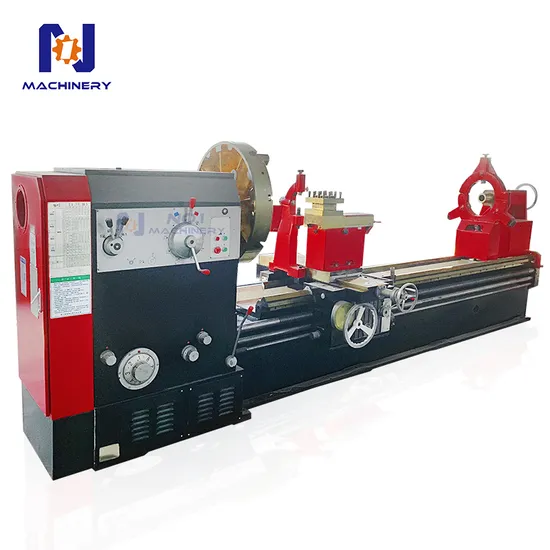

High Precision Cw6180 Manual Lathe Machine Heavy Duty Turning Universal Lathe with 550/600mm Bed Rail Width

Product Description

Product Description
The CW Series Heavy-Duty Lathe stands out for its robust design and precision capabilities. Key features include:
Heavy-Duty Construction: Built with high-quality cast iron, it ensures rigidity and stability, minimizing vibrations for precise machining.
High Power and Torque: Equipped with a powerful motor, it handles heavy workpieces and deep cuts effortlessly.
Large Swing Over Bed: Accommodates oversized components, making it ideal for industries like aerospace and energy.
Advanced Control System: Offers user-friendly CNC or manual controls, ensuring flexibility and ease of operation.
Precision and Reliability: High-precision spindle bearings and a rigid bed design deliver superior accuracy and consistent performance.
Product Parameters

Specification	Unit	CW6180
Swing over bed	mm	800
Swing over cross slide	mm	520
Distance between center	mm	1500/2000/3000
Guideway width	mm	550/600
Max.loading capacity	t	3
Spindle bore	-	105
Spindle bore taper	-	Metric-120/MT6
Spindle nose type	-	1:30
Spindle speed steps		FWD.21 STEP
Spindle speed range	rpm	18,7.5-1000
Chuck	mm	500-4-jaw manual
Turret/tool post	-	4-station
Tool size	mm	32*32
X axis travel	mm	480
Z axis travel	mm	3750
X axis feed grade/range	Mm/r	64/0.05-6
Y axis feed grade/range	Mm/r	64/0.1-2
X axis rapid traverse	Mm/min	1870
Y axis rapid traverse	Mm/min	3740
Metric thread grade/range	mm	44/1-120
Inch thread grade/range	T.P.I	31/28-3/8
Module thread grade/range	mm	-
DP thread grade/range	D.P	-
Tailstock quill diameter	mm	100
Tailstock quill taper	-	80
Tailstock quill travel	mm	250
Main motor power	kw	11
Rapid traverse motor	kw	1.5
Coolant pump motor	kw	0.125
Width * height	mm	1450*1575
Length	mm	3600/4100/5200
Net weight	t	4100/4500/5000

Detailed Photos
MANUAL CHUCK
The standard version is equipped with a 3-jaw or 4-jaw manual chuck. Customers can choose chucks of different sizes according to their requirements. A hydraulic chuck
FOUR-STATION TOOL HOLDER
Four-station tool holder,fast-moving mechanism,can be operated with one hand, and tool holder pro-tection is optional.
QUENCHED TAILSTOCK
The tailstock sleeve is treated with high-frequency quenching and carefully ground to prevent wear and tear.
HIGH PRECISION SCREW
It has good wear resistance and accuracy retention,ensuring that the machine can be used for a long time and has a long life.
STEADY REST
Steady rest are optional accessories, need extra cost.
HIGH PRECISION SCREW
It has good wear resistance and accuracy retention,ensuring that the machine can be used for a long time and has a long life.
2 AXIS DRO
2 axis digital readoutis optional accessory,clinets can choose it asrequirement.
Packaging & Shipping
Company Profile
Zaozhuang NO.1 CNC Machine Tool Co.,LTD is located in the beautiful city, Tengzhou,Shandong Province,China.We specialized in manufacturing & exporting machine tools to the world for more than 30 years. Our factory has More than 30,000m² of the factory with more than 200 workers.We have got many international certifications such as lSO, WIPO, CE, EAC,BV, TUV, SGS, and patents, Our machines have been exported to more than 100 countries and regions, and provide long-term overseas technical guidance and after-sales service for these countries .We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management. Strictly QC control with more than 24 steps testing processes.We wish to cooperate sincerely with friends all over the world to realize mutual development.

FAQ
1. who are we?
We are based in Shandong, China, start from 2016,sell to Domestic Market(65.00%),Western Europe(10.00%),Mid East(10.00%),Africa(3.00%),South America(2.00%),Eastern Europe(2.00%),South Asia(1.00%),Eastern Asia(1.00%),North America(1.00%),Oceania(1.00%),Southern Europe(1.00%),Central America(1.00%),Northern Europe(1.00%),Southeast Asia(1.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Numerical Control Machine, Metal Cutting Machine Tool, Metal Forming Machine Tool, Machining Center, CNC Lathe
4. why should you buy from us not from other suppliers?
We specialized in manufacturing & exporting machine tools to the world for many years. Our factories are keeping develop and produce innovative high-tech machine tools for the metal-working industries every year. We also provide excellent after sales.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDU,Express Delivery
Accepted Payment Currency:USD,EUR,JPY,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

---
