Product Description
Product Description

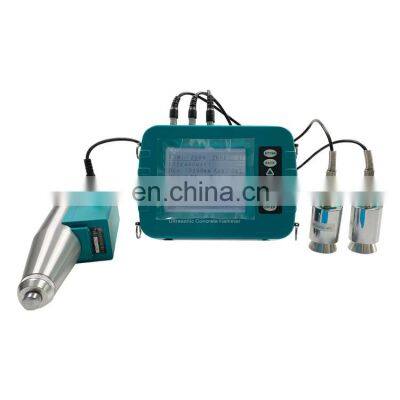

U200 Concrete Ultrasonic Test Meter Rebound HammerUsage Overview1. Ultrasonic Rebound Hammer is a comprehensive instrument for testing the strength of concrete. It can be used as an ordinary rebound tester or as an ultrasonic rebound comprehensive tester. 2. It can measure the rebound value as well as the sound time and sound speed. It is suitable for non-destructive testing of common concrete compressive strength in various construction projects.Product Description· Integral design, compact size · Easy to carry and make work efficient · Measurement data can be calibrated manuallySpecificationHost parameterWaterproof level:IP65 Screen size: 5 inches Volume: 195x140x45mm Weight: 0.85kgUltrasonic indication error±0.1μsUltrasonic transducer operating frequency50KHzInstrument ultrasonic frequency range5HZ~500KHzData transmission modeWireless cloud transmission(optional)Springback apparatus nominal kinetic energy2.207JStiffness of Spring Strike785.0±40.0(N/m)Impact length of ram75.0±0.3mmRebound value average steel anvil rate80±2Rebound value indication error≤±0.5Powder supply modeLarge capacity lithium battery. powder supply time is more than 8 hoursWorking environment-10~40℃Unpacking displayOur Advantages1. New upgraded wireless cloud transmission function;2. It adopts three anti- shell design waterproof, dustproof and shockproof;3. Multi-function: The compressive strength of concrete can be tested by two methods: rebound method and ultrasonic rebound method. It can measure the rebound value, and can measure sound time and sound speed, which is simple and convenient.4. High quality using imported sensors and advanced ARM processor, the test is fast and accurate, and the test results can be analyzed on site;5. Easy to use: full Chinese interface, with prompts, quick learning to conduct on-site testing;6. Powerful: The instrument can store 4000 sets of data and record the test date at the same time, which is convenient for users to view and manage. The USB interface can quickly import data to the host computer for analysis and processing.If you have any questions, please contact me without hesitation, welcome your inquiry! Price can be negotiated!Our customerCompany ProfileCangzhou Lovely Technology Co., Ltd. is a professional manufacturer, specializing in Testing Equipment, Universal Testing Machine, Asphalt Tester, Test Molds, Soil Road and Lab Tester. We supply various type of products ..... We assure high quality to you. · All our products are made in China. Excellent quality with competitive price.Packing & Delivery · Tianjin port or Qingdao Port deliver by sea and also can ship by air via express companyFAQQ1: Are you a factory or trading company? A: We are a factory specializing in manufacturing soil, concrete, cement, aggregate , asphalt test equipment, etc.Q2: Where is the loading port?A: Tianjin port or Qingdao Port.Q3:How to choose the Transportation Term?A:Usually,we may according to your needs,we may choose the most rasonable freight,thento select for you. Q4: What certificates do you have? A: We have ISO 9001, CE, SGS. Q5: Do you have an OEM service? A: Yes. We can provide OEM services according to your requirements.Q6: What are the payment terms? A: T/T payment is preferred and other could be accepted, such as L/C, D/P, Western Union, PayPal etc. It is negotiable.
>>
