CE Certificate Self Loading Mobile Concrete Mixer Truck for France

Product Description

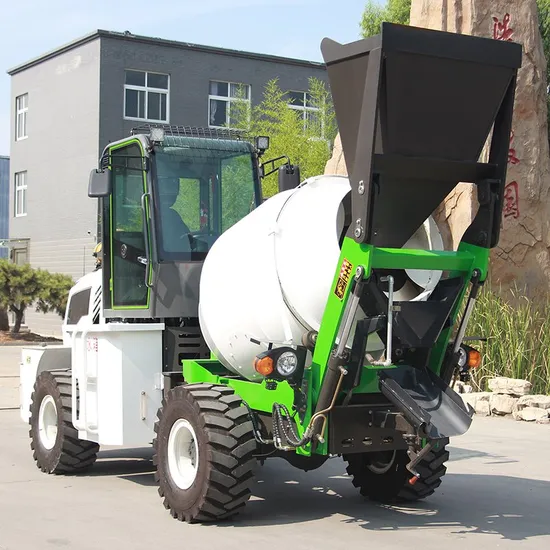

CE certificate self loading mobile concrete mixer truck for france
HWJB120 self loading mobile cement concrete mixer truck is a kind of multifunctional machinery which combines the transit mixer, concrete mixer and wheel loader together. It can automatically load, measure, mix and discharge concrete mixture. Equipped with powerful Yunnei Diesel engine and 4 wheel drive , the self loading concrete mixer is just like a truck and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement. aggregate, stone.



Product Parameters

Specifications	Unit	Parameter
Model	/	HWJB120
Actual mixing capacity	m³	1.2
Rotary drum capacity	m³	1.4
Degree of bias	°	16
Rotational speed	r/min	0-14
Direction of rotation		Feed:clockwise output:counter clockwise
Mixing drum blade		Two sets of spiral blades and four sets of auxiliary blades
Slump of concrete	mm	70-260
Hydraulic Power Transmission System
Pump model		CBGV-4025
Hydraulic motor model		BMSS-250
Reducer ratio		01:10
Water Supply
Tank capacity/ water supply form	L	540/ automatic timing water supply mechanism with automatic timing
The main performance parameters of the chassis and the engine
Engine type / displacement	L	CF4B68G-Z-13B2/CF4C100T-Z-13B2
model		Straight injection type four-stroke water-cooled supercharged diesel engine
Rated power	kw/r/min	58KW/2400
Max torque	N.m/r/min	255/1500-1800 380/1500-1800
Max running speed	km/h	24
Min steering radius	mm	5000
Climbing capacity	%	26
Tire		23.5/70-16
Driving way		4×4
Weight	kg	4580
Maximum load capacity	kg	2800
Whole machinery weight	kg	7380
Overall size(L*W*H)	mm	6100*1850*3000

Detailed Photos
The wide cabin windscreen and the specially designed loading arms dramatically improve visibility during casting operations. This high-productivity self loading concrete mixer is price-worth, easy to use, features excellent daily performance
Main Feature :
* Italy Leading Design,Automatic Feeding Mixing System
* Simple And Convenient Operation
* High Efficiency Output,Save Time And Labor,Save Cost
* The Perfect Combination Of Mixing Truck And Loading Car
* 180 Degrees With A Rotary Stirring Tank,Two-Way Unloading
Packaging & Shipping
Note : 1 unit HWJB200 is in one 40 ft Container .
Company Profile

FAQ
1) ,What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
2), What is your terms of delivery?
EXW, FOB, CFR, CIF.
3),How about your delivery time?
Generally, it will take 7-10 working days after receiving you advance payment The specific delivery time depends on the items and the quantity of your order
4),What is the warranty of our machine?
Our main machine enjoys a 1 year warranty(except for the hammer). during this time all accessories broken can be changed for a new one And we provide videos for machine install and operation.
5), What is your terms of packing?
Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
6),Do you test all your goods before delivery?
Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.
7),Do you Preferred provide wear parts for transacted clients?
Yes, we have records for your clients, and will prefer providing accessories to clients.
8)How do you make our business long-term and good relationship?
1 We keep good quality and competitive price to ensure our customers benefits;
2 We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
9), Do you have any certificates for your machine?
All of our products coming with the certificates of CE, S09001.

---
