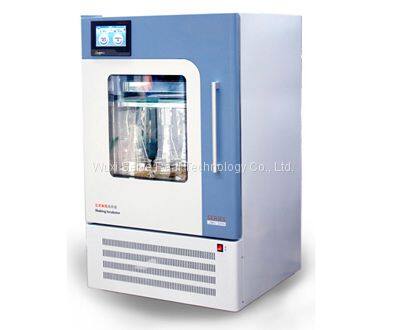

Lab Illuminated shaking incubator light incubation chamber

Product Details

Product Description

Product Description
Features
Vertical double-layer rocking plate design, space-saving
High-quality stainless steel mirror studio, easy to clean and anti-corrosion. Electrostatic spray plastic shell, durable.
Novel design of the centrifugal circulating air duct, which forces the air in the working room to flow, guarantee more uniform of temperature.
Hollow tempered glass door, easy to observe the internal situation. The elastic pressure ventilation hole design meets the oxygen demand of the sample.
Imported fluorine-free refrigeration compressor, novel design of refrigeration working mode.
Controlled by high-quality servo motor, accurate rotation number is measured, longer service life, maintenance-free.
Using high-precision 16-bit true color touch screen computer control system. All function displays and set values are displayed on the same interface, making observation more intuitive.
Has fixed value operation mode and programmable mode, makes it a multi-purpose equipment.
Real-time curves and historical curves can be drawn, and screenshots can be printed; historical data can be saved for up to 1 year.
The backup or printout can be exported by U disk; the measurement data can be printed in real time in the form of data or curve.
With timing function, the time setting range is 0~999.9 minutes (hours).
With power-off memory function to avoid data loss due to power-off and crash.
With over-temperature sound and light alarm, automatic power-off function. With fault self-diagnosis function.
With door control function, the door will automatically stop rotating.
Optional functions
1. Remote monitoring on mobile phone APP
2. Micro-printer to print data and curves
Unique advantages
Integrates a full-temperature shaking incubator and a light incubator, which can be used for both static and dynamic cultivation.
LED combination full spectrum design, multi-level adjustable light intensity, high efficiency and energy saving, high efficiency, long service life;
Especially equipped with an external ambient temperature probe, the ambient temperature is displayed on the panel in real time, convenient for precise control of the temperature inside the box.
With encrypted functions of operation interface to ensure operation security, and all control functions are locked regularly.
Control system integrates lighting and ultraviolet sterilization functions, convenient for observation and sterilization.
Specifications

Model	PY-ZG200
Standard control system	LCD (16-bit true color touch screen) 7-inch touch screen
Oscillation frequency	30-300rpm
Oscillation frequency accuracy	±1rpm
Shaking amplitude	Ф26mm
Temperature control range	4～65℃
Temperature resolution	±0.1℃
temperature uniformity	±0.3 (at 37°C)
control method	P. I. D microcomputer intelligent control
light intensity	0-16000LX multi-speed adjustable (standard) / up to 0-30000LX multi-speed adjustable (optional)
Shaker size/quantity	Up to 0-30000LX multi-speed adjustable (optional)
single layer maximum capacity	439×528mm/2 pieces
Single-layer standard capacity	100m×42 or 250ml×25 or 500ml×16 or 1000ml×9 or 2000ml×6
Factory standard specifications	100m×25 or 250ml×20 or 500ml×12 or 1000ml×6 or 2000ml×4
Timing range	0-9999min（hrs）
Power (kw)	1.3
power supply	AC220±10% 50～60Hz
Dimensions (W×D×H) mm	7407801260
Outer packing size (W×D×H) mm	8608601435
Net weight (kg)	170

Note:1. The performance parameter test is under no-load conditions: ambient temperature 20°C, ambient humidity 50%RH
2. Working environment temperature: 5-25℃
3. In order to give full play to the best use effect of the equipment, the fixtures of all specifications are configured according to the standard capacity when they leave the factory.
