Product Description
Product Description

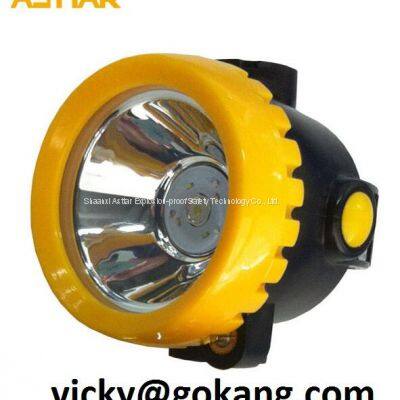

Cordless coal miners safety helmet lamp LED headlamp wireless KL1.2Ex
ATEX No.: Baseefa12ATEX0052-Issue 2
Specification
Rated voltage ........................................... 3.7 V
Battery ...................................................... 1.4 Ah, Li-ion
Lighting time ............................................ 15 hours
Explosion protection type ...................... Ex iaI
Maximum Illumination (1m apart from the lamp)
Beginning of lighting............................... >2200 Lux
After 11 hours lighting............................ >2000 Lux
Main Light current ................................... 0.12 A
Sub-light current ...................................... 0.06 A
Life of cap lamp ....................................... 2 years
Charging time .......................................... <10 hours
Charging voltage ..................................... 6-8 V
Ingress protection ................................... IP65
Weight ...................................................... 200g
Exterior dimensions ............................... Φ67x80x75mm
Features
Miners lamp KL1.2Ex belongs to Group I, category M1, ATEX approved by Baseefa in England, is intrinsically safe, can be used for continous work underground mines and confined space where potential explosive atmosphere (like methane) and coal dust exist, with one main light and four emergency lights.
All-in-one design is very portable, only 200g, a electronic switch controls the ON/OFF of the main/auxiliary light sources.
A charging control circuit is fitted inside the headpiece of the lamp, enables the lamp can be charged by other manufacturer’s chargers
Current-limiting resistance, quick-melting fuse, overcurrent and overheat protective device built in headpiece make lamp work safely, maintenance free,
We offer different charging devices for one, ten and eighty units: KZC1B, KZC10A, KZC80A.
Standards
-EN 60079-0: 2012
-EN 60079-11: 2012
-EN60079-35-1: 2011
-EN 50303:2000
>>
