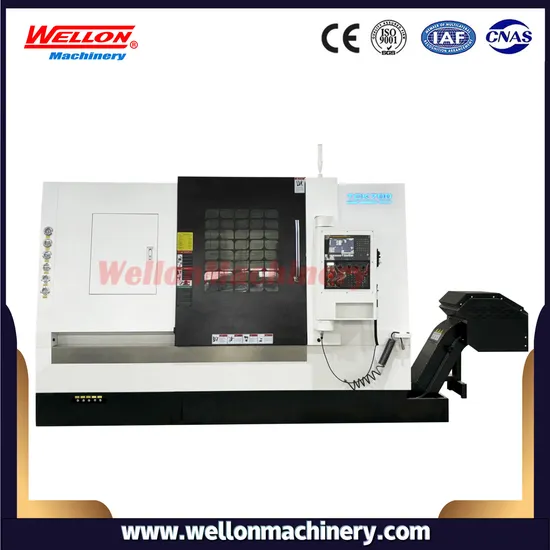

High Quality Slant Bed CNC Turning Lathe Machine TCK630GP

Product Description

Product Description
Detailed Photos
Product Parameters
Features:
The machine is suitable to process all kinds of small and middle-sized shaft and plate work piece,
and could also turn various threads, circle arc, circular arc ,circular cone,inside and outside surface
of revolved body.
This machine is widely used in sanitary,valve ,electricall appliance,instrument,automobile,motorcycle,
bearings and so on.
Higher accuracy Taiwan Linear guideways.
High speed spindle unit.
Higher rigidity cast iron.
Integrated automatic lubrication
45 degree One-piece casting slant bed.
Technical parameter:

Specifications	TCK630GP
Max.swing over bed (mm)	Φ580
Max.turning diameter (mm)	Φ560
Max.swing over cross slide (mm)	Φ360
Max.turning length (mm)	1000
Spindle nose	A2-8
Chuck size	10"
Spindle motor power (kw)	11-15
Max.spindle speed (rpm)	2600
Spindle bore (mm)	Φ87
Max turning Dia Bar through spindle hole(mm)	Φ72
Slant bed angle	45°
X/Z axis leadscrew (mm)	40/50
X axis limit Travel (mm)	350
Z axis limit Travel (mm)	1120
X/Z axis motor torque (N/m)	21/21
X/Z axis linear guideway (mm)	55/55
X/Z axis accuracy (mm)	0.008
X/Z axis repeat accuracy (mm)	0.005
Tailstock quill diameter (mm)	Φ100
Tailstock quill travel (mm)	120
Tailstock travel (mm)	1250
Tailstock taper	MT5
Machine dimension (mm)	3170x1180 x1700 Body size
Weight (kg)	4800

Standard accessories:
Fanuc 0i TF controller
Main motor and Drive servo motors from Fanuc
Hollow hydraulic chuck from Taiwan
Hydraulic tail stock
Hydraulic turret 12 stations from Taiwan
X,Z axis Linear roller type guide way Taiwan
Ball leadscrew Taiwan
Bearings from Japan
MPG
Chain type chip conveyor
Cutting Cooling system
Work lamp
Central auto-lubricating system
Tri-color warning lamp
Heat exchanger in cabinet
Full closed guard
Leveling bolts and blocks
Tools and tool box
Optional accessories:
Power turret 12 positions
C-axis
Y axis
Axial power head
Radial power head
Tool probe renishaw
Air conditioner in cabinet
Bar feeder, servo motor type
Automatic part catcher price
Company information
Packaging & Shipping
FAQ

1: What's your main products of your company? A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center,
Lathe Machines ,
Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on . 2:What kind of controlsdo you use on machines? A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements . 3. What is your trade terms? A : FOB, CFR and CIF all acceptable. 4 : How can I choose the most suitable machines ? A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality. You can also send us product pictures and we will choose the most suitable machine for you. 5 : Do we receive any updates while machine is in the manufacturing process? A : Of course. The progress of the machine will be updated regularly and sent to you.

---
