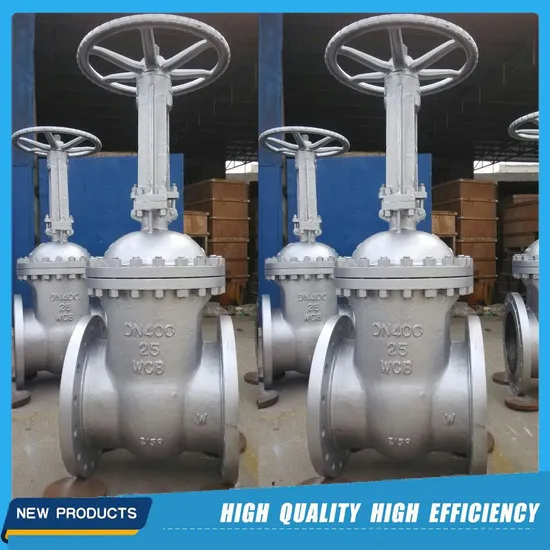

High-Quality DIN Carbon Steel Gate Valve for Oil and Gas

Product Description

High-Quality DIN Carbon Steel Gate Valve for Oil and Gas
Specification: Size: DN15-DN1200
Model:Z40H
Pressure: PN16-PN250
Material: 1.0619/GP240GH/GS-C25(WCB), 1.7357 (WC6) ,1.7379/1.7382(WC9),1.7363 (C5), 1.7389 (C12), 1.4308(CF8), 1.4408(CF8M), 1.4552(CF8C).Etc
Type: Rising Stem and Wedge Single Disc, Solid or Flexible wedge, flat gate.
Operation: Handwheel, gear worm ,Electric operated
Full Port Design, , Non-rising stem / Outside and Screw(OS&Y), Bolted bonnet, Back Seal Structure
Flexible or Solid wedge, Fully guided, Choice of Solid or Split wedge
Renewable or welded seat
Extended stem design for low temperature
Optional Bypass system
Standard:
Design & Manufacture Std.: GB/T12234,DIN3352,GOST 12820-80,Etc.
Face to Face Std.: GB/T12221,DIN3202,Etc.
End Connection Std.: JB/T79,DIN2543-2550,GOST 12820-80,Etc.
Test Standard: ISO5208, API 600, BS 6755

NO.	Part Name	Material
01	Body	ASTM A216WCB	GS-C25,CF8,CF8M
02	Seat Ring	ASTM A216+13Cr
03	Wedge	ASTM A216+13Cr
04	Stem	ASTM A276 420	13Cr.F304,F316
05	Gasket	304+Graphite	GS-C25,CF8,CF8M
06	Bonnet	ASTM A216WCB
07	Stud	ASTM A193 B7	ASTM A193-B8
08	Nut	ASTM A194 2H	ASTM A194-8
09	Backseat	ASTM A216+13Cr
10	Stud	ASTM A193 B7
11	Nut	ASTM A194 2H
12	Yoke	ASTM A216WCB
13	Packing	Graphite
14	Pin	ASTM A276 410	C.S SS304 SS316
15	Gland Bolt	ASTM A193 B7
16	Gland Nut	ASTM A194 2H
17	Bushing	ASTM A276 410
18	Gland	ASTM A216WCB
19	Bearing	ASTM A29	A105,F304,F316
20	Stem Nut	ZcuAl10Fe3 Bronze	Bronze,SS304,SS316
21	Lubricator	Cu	Brass
22	Retaining Nut	C.S
23	Handwheel	ASTM A47	A105,F304,F316
24	H.W. Lock Nut	C.S	25#,SS304,SS316

Zhejiang Jieyu Valve Co., Ltd. is a manufacturer of gate valves, globe valves, check valves, and ball valves with well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in petroleum, chemical industry, metallurgy, electric power, pharmaceutical, paper, urban construction and other industries.
Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
show of power
FAQ:
1. Yes, sample order is available for quality check and market test. But it is not free.
2. It usually takes about 25-30 working days to produce. For big order, it depends on the order quantity.
3. We usually accept T/T, L/C, Western Union, Cash.
4. We offer 12months warranty time.
5. Depends on your request, we have standard models in stock. Some special products and big order will be newly produced according to your order.
6. Yes, different models can be mixed up in one container.
7. Quality is priority, we always attach the importance to quality control from the beginning to the end of the production.Every product will be fully assembled and carefully tested before painting, packing and shipping.
8. Yes, we have the right to export and can sell product all over the world.
9. Our company has been audited and approved API 6D, CE 0036, ISO9001.
Test report will be provided when all goods finished. Also we are the ******'s gold supplier since 2010. Now we clients all around the world.

---
