Basic Info.
Type

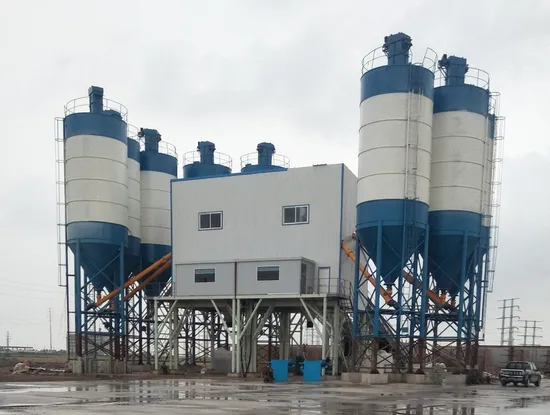

Concrete Mixing Plant
Machining Process
Welded Molding Machine
Vibrating Amplitude
1.2mm
Certification
ISO9001: 2000, CE
Color
According to The Customer′s Requirement
Batching Machine
PLD7200qd-IV
Aggregate Storage Bins Qty
4
Mixer Discharge Height
3.8m
Transport Package
Container Delievery
Specification
50.8*20*21.3m
Production Capacity
10 Units Per Month
Product Description
| Item | Unit | HZS60 | HZS90 | HZS120 | HZS180 | HZS240 | HZS270 |
| Nominal output/h | m³/h | 60 | 90 | 120 | 180 | 240 | 270 |
| Mixer charging | m³ | 1 | 1.5 | 2 | 3 | 4 | 4.5 |
| Batching machine | | PLD1600Q-III | PLD2400Q-IV | PLD3200QD-IV | PLD4800QD-IV | PLD6400QD-IV | PLD7200QD-IV |
| Aggregate storage bins charging | m³ | 7 | 15 | 15 | 20 | 25 | 25 |
| Aggregate storage bins qty | pc | 3 | 4 | 4 | 4 | 4 | 4 |
| Aggregate weighing capacity | kg | 2000 | 3000 | 4*2000 | 4*3000 | 4*4000 | 4*5000 |
| Cement weighing capacity | kg | 600 | 1000 | 1200 | 1600 | 2200 | 2700 |
| Fly-ash weighing capacity | kg | / | 300 | 400 | 600 | 800 | 900 |
| Water weighing capacity | kg | 250 | 400 | 500 | 800 | 1000 | 1200 |
| Additive weighing capacity | kg | 40 | 40 | 50 | 80 | 100 | 120 |
| Mixer power | kw | 37 | 2*30 | 2*37 | 2*55 | 2*75 | 2*85 |
| Belt conveyor power | kw | 15 | 15 | 30 | 45 | 55 | 65 |
| Total power | kw | 80 | 110 | 150 | 200 | 260 | 260 |
| Mixer discharge height | m | 3.8 | 3.8 | 3.8 | 4.1 | 4.1 | 4.1 |
| Total weight | t | 32 | 39 | 60 | 72 | 78 | 90 |
| Outline dimension(L*W*H) | m | 31.4*15.4*19.4 | 26.6*21*19.4 | 46.7*23*20 | 43.5*21*20 | 43.5*24*20 | 50.8*20*21.3 |
| Loading | | Belt conveyor |
| Weighing accuracy | Aggregate | % | ±2 | ±2 | ±2 | ±2 | ±2 | ±2 |
| Powder | % | ±1 | ±1 | ±1 | ±1 | ±1 | ±1 |
| Water | % | ±1 | ±1 | ±1 | ±1 | ±1 | ±1 |
| Additive | % | ±1 | ±1 | ±1 | ±1 | ±1 | ±1 |
ParameterFeatures:
Designed for minimum space requirement and large quantities of concrete production performance, durable container modules enable economical transportation,minimum time and operations of erection and disassembling,robust structure reduces the requirement of foundation,leading to economical plant relocations,plant fully enclosed and protected from harsh environment,also low noise and dust emission.
>>
