Buy Forestry Trailer Hydraulic Winch 0.5t

Product Description

Buy Forestry Trailer Hydraulic winch 0.5t

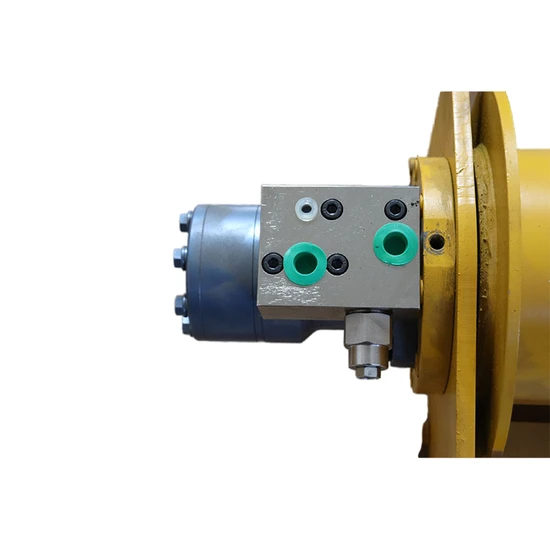

JINJA brand 3 tons(6600 lbs) hydraulic winch is mainly composed of hydraulic motor (lowspeed or high speed motor), brake, gear box, drum, support shaft, frame, rope device(optional), etc.
Our whiches can be widely used in all kinds of lifting equipment, such as railway locomotiveand truck crane, ship, oil field drilling, coal mine, port, small engineering machinery and so on.
Product Parameters

Jinjia Brand Hydraulic Winches Technical Specifications
Product items		1T~3T	5T	6T	8T	10T	12T	16T~25T
Torque (max)	Tnom(N.M)	1912	2266	2421	3200	3560	5318	9000~12000
Reduction ratio	i	6	5	7	22.5	25	30	36~42
Wire rope winding layer		4	4	4	4	4	4	4
Wire rope specification	mm	φ11	φ11	φ11	φ11	φ11	φ11	φ11
Output revolution (rated)	Nnom(r/min)	44.5	66	49	53	47	63	60
Brake opening pressure	Mpa	0.8-1.5	0.8-1.5	0.8-1.5	0.8-1.5	0.8-1.5	0.8-1.5	1.5-2
Hydraulic motor series	Optional part	OMR seres	OMS seres	OMS seres	A2F55 seres	A2F55 seres	A2F55 seres	A2F80-A2F107
Lubricating oi specification		Grease	Grease	LCKD220	LCKD220	LCKD220	LCKD220	LCKD220
Amount added	Q(L)	1	1.5	1.5	2	2	2.5	3
Weight	Kg	40~45	70	90	125	125	125	150

Application scenario
JinJia hydraulic winches can be widely used in conveyor tensioning device and mechanicalengineering from heavy machinery such as truck crane, crawler crane, aerial vehicles, forestrycrane, and shipping ports such as port cranes, floating crane, dredger, cranes, davits, and canfor large play equipment such as oil rigs and offshore oil drilling platform, piling machineryrotary drilling rig, drilling, core drilling, hydrostatic pressure pile machine and so on.
Company Profile
Jining Jinjia Hydraulic Co. ,Ltd. is a Chinese manufacturer of hydraulic products locates inJining New Material industrial Park, Shandong Province. The company The company coversan area of 20 acres, with the office area of 9,000 square meters.Our company's CNC machining centers, forming grinder,CNC cars are imported fromEurope. We manufacture and supply orbit hydraulic motors and other hydraulic productscategories.
More than 3000 kinds of orbit motors with variety series of models and data can be offered,with rated displacement from 50cc/r to 1000 ccr, rotation speed from 1000 r/min to 100 r/min,.and max torque from 100Nm -2000Nm. Our products can substitute Eaton(Char-Lynn)series products.We supply different kinds of hydraulic motors, including OMP/JH/BMP/BM1/HMP series,OMRJS/BMR/BM2/HMR series, OMS/2000/BM3/BM5/HMS series,OMT/6000/BM6/BMT/HMT series hydraulic orbital motor and hydraulic pumps/hydrauliccylinders/hydraulic valves.
The hydraulic products have been exported to countries such as the United States, GemmanyBrazil, Canada, india, Turkey, Finland and Malaysia, etc. We have outstanding experience inproduct design, manufacturing processes and quality assurance, etc., and advanced productimprovements awareness. We aim to become a world-class manufacturer of hydraulicproducts. Our eternal pursuit and objectives is to improve the performance of our products asa starting point and to provide the best products and service to our customers.
FAQ
Q:Are you trading companyormanutactureiA: We are factory.
Q: My requirements are special, can the product be customized?A: YES! We are manufacturer, and we have our own engineer group. They can work outcustomized design according to your requirement. The most important ting is that you
should provide all the needed information.Q: How long is your delivery time?A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods arenot in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?A: Yes, we could offer the sample ,but it need to be afford by customer
Q: What information should l provide to you before you could recommend asuitable winch and quote for me?
A:1 Intended application of the winch (including working condition)2 line pull (t)
3 line speed (m/min)
4 drum capacity/rope length (m)
5 rope diameter ( if have)
6 hydraulic system pressure and pump flow ( if have)
7 other special requirements

---
