Dry Food Powder Spiral Mixing Icing Sugar Ribbon Mixer Machine

US$3,000.00-30,000.00 1 set (MOQ)

Basic Info.

Model NO.
BSR
Application
Granules, Liquid, Liquid with Suspended Solids, Powder
Application Area
Agricultural Chemicals, Chemical, Engineering & Construction, Food, Pharmaceutical
Certification
CE, ISO
Condition
New
Control System
Touch Screen Control
Cooling Method
Water Cooling
Heating Method
Hot Air Heating
Main Material
Stainless Steel
Mixing Capacity
500-1000L
Safety Features
Anti-Slip Feet, Overload Protection, Splash Guard
Speed Control
Dual Speed
Speed Range
50-59 R/min
Stirring Type
Spiral
Temperature Control
With Cooling System
Working
High Speed Mixer
Layout Type
Horizontal
Operating Type
Cycle Operating
Warranty
1 Year
Mixer Type
Ribbon Mixer
Mixing Drum Shape
Ribbon Mixer
Capacity
30-2400 Liter/Batch
Transport Package
Container Loading/Wooden Case
Specification
Customizable
Trademark
Brightsail
Origin
China
HS Code
8479820090
Production Capacity
30sets/Month

Packaging & Delivery

Package Size
1300.00cm * 1000.00cm * 1400.00cm
Package Gross Weight
320.000kg

Product Description

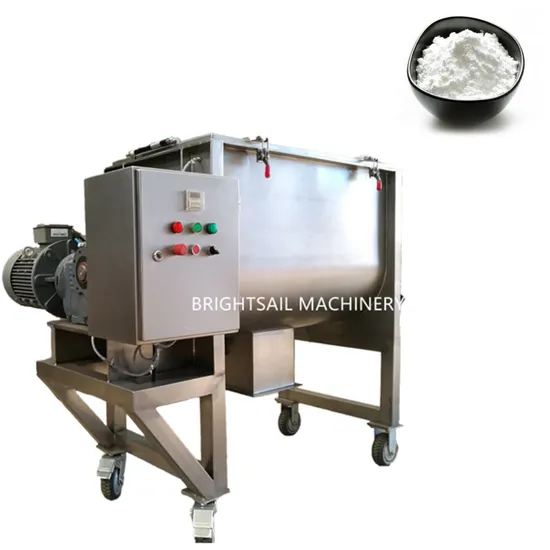

Product Description The BSR ribbon mixer machine comprises of U-shape barrel, transmisstion parts and ribbon agitating blades which usually have doubleor triple layers with outside screw gathering material from side to center and inside screw transmitting the material from center to sides to form convection mix.
It is widely used in solid-solid (powder material) and solid-liquid(powder material-fluidity material) mixing in the fields of chemical industry, pharmacy, foodstuff industries.
Main features 1) Simple structure in horizontal U shape, easy in installation and maintenance.
2) Adopting advanced world famous brand components in pneumatic parts ,motor,electric parts ,bearings and operation parts.
3) hermetic seals are adopted on both sides of our ribbon mixer,
4) There is safeyty net on the cover, so that operator cannot reach out arms into the mixer, danger can be prevented.
5) Pneumatic valve is adopted to discharge material
Product Parameters
Model Max work volume (L) Rotate speed (rpm) Overall size (L*W*H) (mm) Weight (kg)
BSR-300 180 66 1550(L)*812(W)*1015(H) 780
BSR -500 300 66 1975(L)*1059(W)*1120(H) 955
BSR-1000 600 41 2340(L)*1380(W)*1455(H) 1400
BSR-2000 1200 33 2480(L)*1651(W)*1805(H) 2500
BSR-3000 1800 33 2945(L)*1896(W)*1980(H) 3300
BSR-4000 2400 29 3038(L)*1946(W)*2205(H) 3600
BSR-5000 3000 29 3932(L)*2010(W)*2035(H) 4620
BSR-6000 3600 26 3938(L)*1882(W)*2246(H) 5300
BSR-8000 4800 26 3986(L)*2160(W)*2516(H) 6800
BSR-10000 6000 19 4500(L)*2270(W)*2667(H) 8900
Detailed Photos Safety net: help to prevent accidents Spiral Ribbons: drive material to move to get mixed Discharge valve: pneumatic valve Platfrom (Optional): for easy feeding and cleaning Applications
Company Profile Our company-Brightsaill Machinery Co., Ltd is focus on the research of powder equipment, such as dryer, grinder, mixer, conveyor, sifter machines... etc. Our products can be applied in food, medicine, chemical and other industries and had won a good reputation.
After 15 year's development and accumulation, our company has been one of the most influential equipment manufacturers in the industry. And we wish to grow up and develop together with all new and old customers.
After Sales Service Packaging & Shipping *Usually small machine will be packed in the wooden case, and we can also pack it according to customers special request.*If machine is big, we will fix the machine inside container with steel wires and nails.Machine won't move inside the container.
