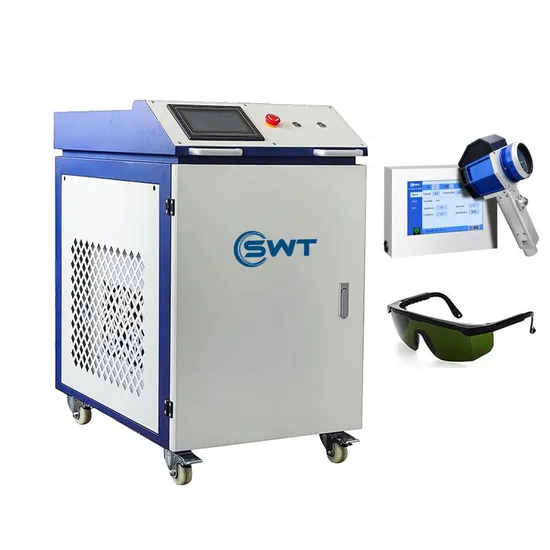

Most Popular Cleaner Rust Removal Metal Surface Parts Continuous Cw 1000W 2000W 3000W Laser Cleaning Machine

Product Description

Most Popular Cleaner Rust Removal Metal Surface Parts Continuous Cw Laser Cleaning Machine

Product Parameters
Product Application
Unique self-developed spiral cleaning mode. Spiral series, scanning length and width can be set according to customer's demands, effectively avoiding the zebra crossing caused by traditional laser cleaning.
High cleaning efficiency, uniform cleaning surface, no damage to substrate of components.
Professional laser cleaning optical design, high damage threshold of scanning mirrors, high beam transmittance and large focus depth of F-theta lens, can meet long-time working of high-power laser cleaning.
Special custom laser and galvo scanner head, high cleaning speed, to meet various high-level laser cleaning application demands.
Simple structure of hand-held cleaning head, light weight, ergonomic design and easy to operate.
Can match with various types of laser, greatly improve the applicable range of this system.
For pulse fiber laser,we mostly use the best MOPA laser source,it can clean all kinds of materials and products, like all metals,wood,stone,glass,ceramic etc.Why is it suitable for all kinds of materials?Because MOPA laser source have a wide change of frequency and pulse width.The frequency can change from 1-4000KHZ,the pulse width can change from 1-500ns.We have tested a lot materials,and has a data base for different materialsParameters:

Machine Model	SWT-QX-300	SWT-QX-500	SWT-QX-1000
Laser source	Pulse Fiber laser	Pulse Fiber laser	Pulse Fiber laser
Laser Power	300W	500W	1000W
Fiber cable Length	5 M	10 M	10 M
Pulse Energy	12.5 mJ	50 mJ	50 mJ
Pulse width	2-500ns	2-500ns	2-500ns
Wavelength	1064nm	1064nm	1064nm
Frequency	1-1000KHz	10-400KHz	10-400KHz
Clean speed	≤20 M²/Hour	≤30 M²/Hour	≤40 M²/Hour
Cooling	Water cooling	Water cooling	Water cooling
Dimension	900*550*980	900*550*980	900*550*980
Weight	115Kg	130Kg	160Kg
Beam width	10-120mm	10-160mm	10-160mm
Optional	Manual/Auto	Manual/Auto	Manual/Auto
Work Temperature	0-40 ºC	0-40 ºC	0-40 ºC
Power Consumption	< 4KW	< 6KW	< 8KW
Voltage	Single Phase 220V,50HZ	Three Phase 380V,50HZ	Three Phase 380V,50HZ

Application:
Metal workpiece laser derusting, surface oil removal, paint and coating removal, welding surface cleaning, mold cleaning, cultural relics restoration, Widely used in such industries: aerospace, mold, microelectronics, construction, nuclear power plants, automobile manufacturing, medical etc.
Comparison with Traditional Clean Methods:

Comparison	Laser Cleaning	Chemical Cleaning	Mechanical Grinding	Dry ice cleaning
Washing Method	non-contact cleaning	contact cleaning	Abrasive contact cleaning	non-contact cleaning
Harm to base material	None	Yes	Yes	None
Washing Efficiency	High	Low	Low	Mid.
Consumable	Power	Chemical Detergent	Abrasive paper, grinder, abrasive stone	Dry Ice
Washing result	Very good, very clear	Medium, uneven	Medium, uneven	Good, uneven
Precision Washing	Accuracy controllable. High precision	Uncontrollable, low precision.	Uncontrollable, medium precision.	Uncontrollable, poor precision.
Safety/Environment	No pollution	Chemical pollution	Dust pollution	No pollution
Operation	Easy to operate, portable or automation optional.	Complicated process, higher technical requirement of the operator. Pollution prevention measures required.	Need more time & manpower. Pollution prevention measures required.	Easy to operate, portable or automatic.
Investment	High investment on machine. But no consumable, low maintenance cost	Low investment on machine. But expensive consumables	Medium investment on machine. High man-power cost.	Medium investment on machine. High consumable cost.

Company Profile

Certifications
Packaging & Shipping
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory. And we have been in the laser field for more than 10 years.
Q: How long is your delivery time?
A: Generally, it will take 7 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q: Do you provide samples? Is it free or extra ?
A: Yes, we could offer the sample for free charge, but customers should pay the courier cost.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shipment.

---
