US$2.00-5.00
|
1 Piece
(MOQ)
|
Basic Info.
Nature of Operation
Receiving Antenna, Transmitting Antenna
Operating Wavelength
Microwave
Sturcture Form
Wire Antenna
Usage
Ibs/Das/Pdas, Communication Antenna
Frenquency(MHz)
698-806 806-960 1710-2700 3300-4000MHz
Capality
Ibs/Das Overall Project Delivery Capability
Connector Type
4.3-10-F X2
Transport Package
Carton/Palletizing
Specification
see below data table
Production Capacity
2000000PCS/Year

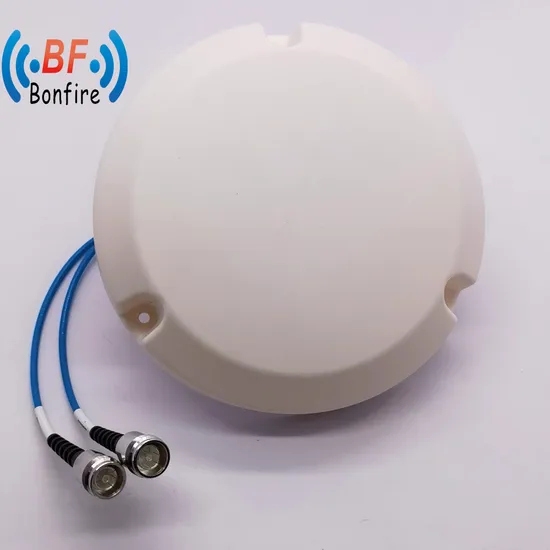

Product Description
Features:
★Wide frequency band, wide coverage
★PIM optimized design.
★Ideal for all kind of DAS applications.
★Low insertion loss.
★High power handling.
★Small size, Low weight.
★Good stability.
Specifications:
| Frequency Range(MHz) | 698-806 806-960 1710-2700 3300-4000 |
| Gain(dB) | 3.0±0.5 3.0±0.5 4.5±1.0 5.0±1.0 |
| VSWR | ≤1.8 ≤1.5 ≤1.5 ≤1.8 |
| Polarization | Linear×2 |
Horizontal
Beam width | Horizontal
Vertical | 360 |
| 90 85 45 35 |
| Isolation( dB) | >17 >17 >20 >25 |
| PIM, 3rd Order, 2 x2 W(dBc) | ≤-150 |
| Maximum Power(W) | 50 |
| Impedance(Ω) | 50 |
| Connector Type : | 4.3-10-Fx2 |
| Size(mm) | Φ182×30 |
| Antenna Weight(kg) | 0.2 |
| Mounting Kit | Ceiling, via hole (standard) |
| Radome Material and Color | ABS, White, RAL9003 |
| Relative humidity(%): | < 95 |
| Operating Temperature(ºC): | -55~60 |
| Applications: | Indoor |
All our products can satisfy :
1: Customized Color (Black, Red, Grey, Golded,etc.)
2: Used in IBS/DAS/Public Safety/ Small Cell /Public Network / Private Network
3: Trial order accepted to prove our superior quality
4: OEM/ODM available .
5: Product Lead: delivery within 4 weeks for mass production
6: Unbeatable price to support you win the bid
All our products category :
RF Antenna , RF combiner, Power Splitter , Directional Coupler, Hybrid Coupler, RF Loads, RF Attenuator , Cable Assembly , RF Jumper Cable, RF Coaxial Cable , Cable clamp , etc.
We owe one-stop supply chain capability , you can get the lowest price for your DAS/IBS project .
Customers we served :
HUAWEI, ZTE, ERICSSON and their branch abroad, CHINA MOBILE, CHINA UNICOM, CHINA TELECOM and ROSENBERGER, RSF, etc.
Cooperate Once, Replace Never !
>>
