Jhm 100L EDI Module RO EDI Water Treatment System for Pure Water

Product Description

Product Description EDI equipment (Electric ion exchange device) uses RO production water as the inlet water, which can replace the traditional ion exchange device to continuously produce water, ultra-pure water, and the resistivity can reach 10-18 ohm /cm.
EDI device is an EDI unit formed by filling and clamping ion exchange resin between anion/cation exchange membrane.The EDI module separates a certain number of EDI units with a network to form a concentrated water chamber, and sets negative/positive electrodes at both ends of the EDI unit group.Under the promotion of direct current, the water flows into the fresh water chamber, and the anions and cations in the water respectively pass through the anion/cation exchange membrane into the concentrated water chamber and are discharged as concentrated water.

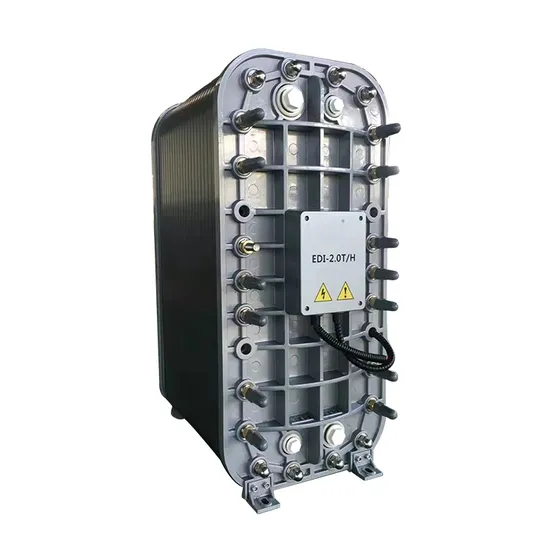

Detailed Photos
Product Parameters

Min-style EDI module
Style No.	Capacity	Effluent quality
EDI-P-50L	50L/H	≥15MΩ•cm
EDI-P-100L	100L/H	≥15MΩ•cm
EDI-P-200L	200L/H	≥15MΩ•cm
EDI-P-250L	250L/H	≥15MΩ•cm
HP Series EDI module
EDI-P&F-0.5-HP	0.5T/H	≥15MΩ•cm
EDI-P&F-1.0-HP	1.0T/H	≥15MΩ•cm
EDI-P&F-2.0-HP	2.0T/H	≥15MΩ•cm
EDI-P&F-3.0-HP	3.0T/H	≥15MΩ•cm
EDI-P&F-4.0-HP	4.0T/H	≥15MΩ•cm
LX Series(Can replace Siemens original EDI module)
LX-04Z	0.5T/H	≥15MΩ•cm
LX-10Z	1.0T/H	≥15MΩ•cm
LX-18Z	2.0T/H	≥15MΩ•cm
LX-24Z	2.5T/H	≥15MΩ•cm
LX-30Z	3.0T/H	≥15MΩ•cm
LX-45Z	5.0T/H	≥15MΩ•cm

Apllication EDI technology is a cost revolution in water treatment industry, its biggest characteristic is to use electricity instead of using acid and alkali to regenerate resin, so it is very economical and practical, can have limited energy consumption to obtain stable ultrapure water.It has the advantages of stable effluent quality, low operating cost, convenient operation and management, and small occupation area. Since the industrialization of EDI technology in 1986, it has been widely used in the fields of medicine, electronics, electric power, electroplating and coating.
1)The biopharmaceutical industry purifies water;
2)Electronic semiconductor, photovoltaic industry high pure water, ultra-pure water;3)Power plant boiler industry water;
4)Power plant boiler industry water;
5)Fine machinery industry ultrapure water;
6)The preparation of electroplating bath and cleaning water for electroplating parts in 7)Electroplating and coating industry;
8)Ultra pure water for battery industry
