Factory Price 24VDC Thermocouple Thermometers Hygrometer Digital Industrial Thermometer MD-T560A

Product Description

Product Description:

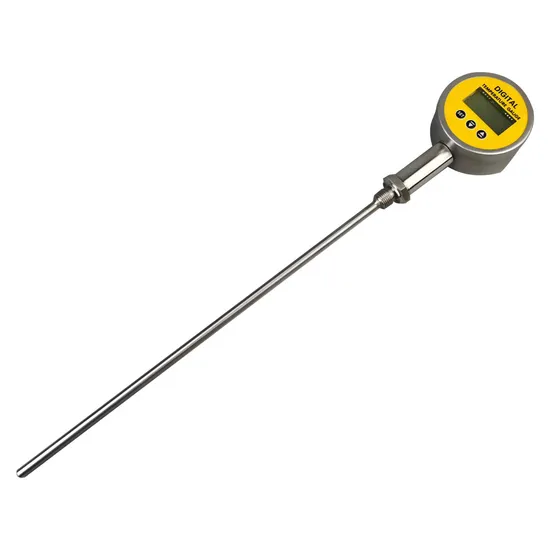

MD-T560 digital remote thermometer is a thermometer with LCD digital display, built-in high-precision temperature sensor, it can accurately display the temperature in real time & can remotely transmit the temperature signal, with the characteristics of high accuracy and long-term stability.
This remote thermometer adopts LCD display with various functions such as Celsius / Fahrenheit switching, full-scale correction, and digital filtering. It is simple to operate and easy to install.
This product can measure water, oil, air and other non-corrosive stainless steel medium. The high-precision PT100 is used as the temperature measurement element. The measurement method adopts a temperature probe to contact and insert. The circuit compensates the operation temperature from 0 to 60 degrees
Applications:
Instrumentation supporting
Laboratory
Engineering machinery
Automated production line
Petrochemical
Environmental monitoring
Technical Characteristics:
With 4-20mA current signal output
Probe length and temperature range are selectable
External power supply 12 ~ 28v
High temperature accuracy
Adopt 304SS shell,strong and sturdy
Support temperature calibration and current calibration on site
Measurement response speed is adjustable
Specification:

Temperature Range	-50~300ºC
Accuracy	±0.5%FS, ±0.25%FS, ±0.1%FS
Long-term Stability	0.5%FS/Year
Power Supply	12~28VDC (24VDC)
Output	4~20mA
Electrical Protection	Anti electromagnetic interference
Sampling Rate	01-20 adjustable
Load Impedance	≤500Ω
Display Screen	4 digit LCD display
Backlight Color	White
Measurement Medium	Non-corrosive media such as air, water, oil
Shell Material	Cast aluminum
Connection Material	304 stainless steel (or customized)
Product Function	Digital filter adjustment, support customer site temperature calibration and current calibration
Operation Temperature	0~60ºC
Storage Temperature	-40~125ºC
Ambient Temperature	0~95%RH

---
