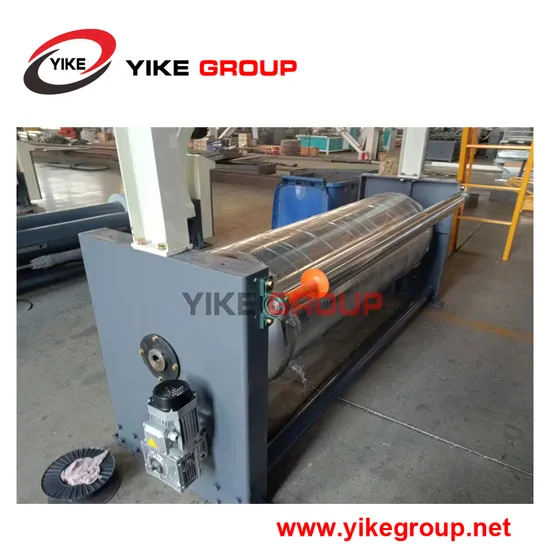

Top Core Paper Preheater, Diameter 900mm

US$6,000.00-30,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

YK-2200

Condition

New

Certification

RoHS, ISO 9001:2000, ISO 9001:2008, CE

Automation

Automatic

Suitable for

Recycled Material, Paper, Corrugated Cardboard

Paper Thickness

Cardboard

Item

Top Core Paper Preheater

Size

2200mm

Name

Carton Box Making Machine

Function

Corrugated Box Machine

Usage

Making Corrugated Cardboard

Speed

250m/Min

Machinery Test

Provided

Application

Food, Beverage, Commodity, Medical, Chemical

Voltage

380V/415V/440V

Use for

2/3/5 Layers Line Width 1800-2500mm

Transport Package

Standard Packaging

Specification

Standard

Trademark

YIKE GROUP

Origin

China

HS Code

84413090

Production Capacity

50sets/Month

Product Description

Top Core Paper Preheater, Diameter 900mm
technical parameters:
1. Effective width:2200mm 2, diameter of preheat roller:¢900mm 3,angle adjustment range:360°rotation 4,angle shaft diameter:¢110mm×2
5,steam temperature:150-180ºC 6,steam pressure:0.8-1.3Mpa
7,equipment size:Lmx3.3*Wmx1.1*Hmx1.3 8,single weight:MAX2000Kg
9,working power:380V 50Hz 10,Motor power:250W short(S2)working system

1	Effective width		2200mm	2		Design produce speed	150m/min
3	Three layer work speed		100-120m/min	4		Five layer work speed	80-100m/min
5	Seven layer work speed		-------------------	6		The highest change single speed	100m/min
7	Longitudinal separation accuracy		±1mm	8		Cross-cutting precision	±1mm
note	Speed the above targets required to achieve:effective width2200mm,Comply with the following standards and ensure the paper's equipment condition 175 ºC heating surface temperature.
	Top paper index	100g/--180g/ Ring crush index(N.m/g)≥8 (Water containing8-10%)
	Core paper index	80g/--160g/ Ring crush index(N.m/g)≥5.5 (Water containing8-10%)
	In paper index	90g/--160g/ Ring crush index(N.m/g)≥6 (Water containing8-10%)
9	Flute combination
10	Steam requirement	The maximum pressure 16kg/cm2			Common pressure10-12kg/cm2			use4000kg/Hr
11	Electricity demand	AC380V 50Hz 3PH			Total power≈220KW			Running Power≈150KW
12	Compressed air	The maximum pressure 9kg/cm2			Common pressure4-8kg/cm2			use1m3/min
13	space	≈Lmin70mWmin10mHmin5m(The actual drawing to provider to provide audited prevail)
