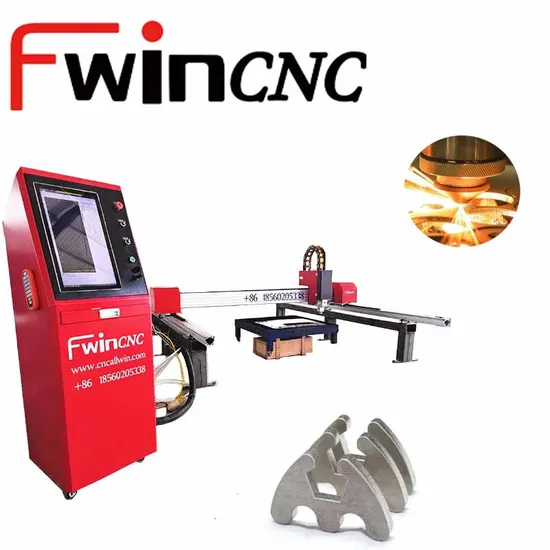

1.5kw 3kw 6kw Sheet and Pipe Laser Cutting Metal Laser Cut for Aluminum Carbon Steel

Product Description

Product Features
Comparison between laser cutting and cnc plasma cutting:
1. Compared with plasma cutting, laser cutting is much more precise, the heat-affected zone is much smaller, and the slits are also much smaller;
2. If you want precision cutting, small slits, small heat-affected zones, and small plate deformation, it is recommended to choose a laser cutting machine;
3. Plasma cutting uses compressed air as the working gas and high-temperature and high-speed plasma arc as the heat source to partially melt the metal being cut, and at the same time use high-speed airflow to blow away the melted metal to form a cut;
4. The heat-affected zone of plasma cutting is relatively large and the cutting slit is relatively wide. It is not suitable for cutting thin plates because the plates will deform due to heat;
5. Laser cutting machines are more expensive than plasma cutting machines;
Advantages of laser cutting:
1. Thin cutting seam: The cutting seam of laser cutting is generally 0.10~0.20mm;
2. Smooth cutting surface: The cutting surface of the laser cutting machine has no burrs and can cut plates of various thicknesses. The cutting surface is very smooth and requires no secondary processing;
3. Fast speed, improving metal plate cutting production efficiency;
4. Wider adaptability: No matter it is a large or small plate, it can be processed without any restrictions as long as the work surface allows it. In contrast to traditional stamping forming, the mold manufacturing cost of large products is very high, and laser cutting does not require any molds. Manufacturing, and can completely avoid the sagging formed when punching and shearing materials, greatly reducing production costs and improving product quality.
5. Suitable for the development of new products: According to the product drawings, laser processing can be carried out immediately, and the physical objects of the new products can be obtained in a short time.

No.	Model:ALLWIN--1500W/2000W.3000W
1	max working area		2000mmx3000mm
3	Laser source		MAX BRAND1.5KW fiber laser
4	laser head		Swiss RAYTOOLS 110 with auto focus
5	software		Professional raytools software
6	motor and driver		Japanese Panasonic servo and driver
8	Water chiller		S&A brand with Dual temperature,dual control
9	working voltage		1 PHRASE 220V with 50Hz
10	cutting capacity with 3000W		18mm thickness for carbon steel
	cutting capacity with 3000W		8mm thickness for stainless steel
11	cutting capacity with 1500W		12mm thickness for cabon steel
	cutting capacity with 1500W		5mm thickness for stainless steel
15	Accessories included		1 SET RAYCUS FIBER LASER SOURCE 1500W
			1 SET RAYTOOLS LASER HEAD(AUTOMATIC FOCUS)
			1 SET WATER CHILLER
			RAYTOOLS SOFTWARE
			INDUSTRIAL COMPUTER
			25pcs nozzles+2pc ceramic holder+15pc optical lense+1pair focus lens

Detailed Photos
Specification Chart
Features of 1500W 2000W 3000W Fiber Laser Cutting for Metal
1.Low cost,laser power consumption only 0.5-1.5kw per hour. 2.China best quality laser source,high performance,stability and service lifespan over 100,000hours,free of maintenance.High speed ,high efficiency,thin plate cutting can be over 10 meters per minute. 3.Automatic height sensor on laser head for uneven pieces. 4.Imported ball screw and linear guide rail driving system. 5.Easy and efficient CNC software for fast programming.
Application
Cutting Sample of Fiber Laser Cutting
Warranty for the machine:
1. Two years quality guarantee for the main parts of the machine, excluding consuming parts, and the main parts shall be changed free of charge during the warranty time2. Lifelong maintenance for the machine, and lifelong technical support from sophisticated English-speaking engineer team.3. Free training course at our plant4. We will provide the machine consuming parts with factory price when you need replacement.5. 12 hours online service each day, free technical support. Packaging & Shipping
1.Anti-collision package edge: All parts of the machine are covered with some soft materials, mainly the use of pearl wool .
2.Fumigation wooden box:Our wooden box is fumigated, do not need to check the wood, saving the transport time.
3.Whole film packaging machine: Avoid all damage that may occur during delivery. Then we will cover the plastic package tightly to ensure that the soft material is covered intact, also avoiding water and rust.
4.Wooden box at the bottom of a solid iron socket for easy handling.
