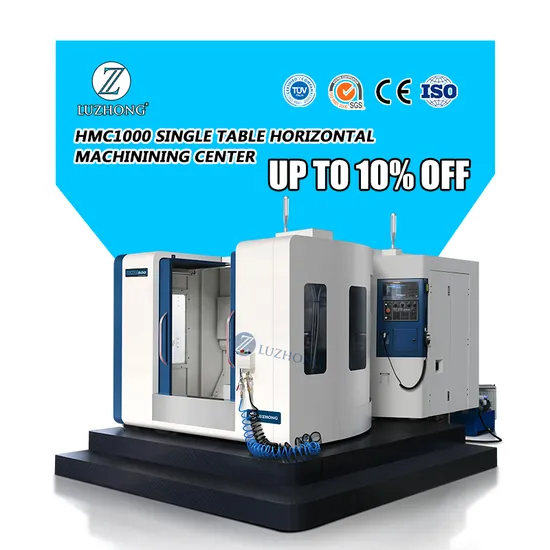

Fanuc/Siemens CNC Milling Machine China HMC1000 CNC Horizontal Vertical Machining Center

Product Description

Fanuc/Siemens CNC Milling Machine China HMC1000 CNC Horizontal Vertical Machining Center Product Description
Features:
High quality resin sand
Taiwan spindle
Taiwan ball screw and locking nut
Automatic lubrication system
Application:
Suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .
It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc. Product Parameters
Product main technical specifications:

Specications	Units	HMC1000
Table size	mm	1000*1000
X axis travel	mm	1600
Z axis travel	mm	1000
Y axis travel	mm	1000
Distance from spindle center to table surface	mm	120- 1120
Distance between spindle nose and table center	mm	200- 1200
Table quantity	pcs	1
T slot(number-width*pitch)	mm	5-22*125
Max. worktable load	kg	2000
Table indexing	°	1°*360
Maximum speed of table	r/min	10
Main motor power	kw	15/18.5
Spindle taper		BT50-190
Max. spindle speed	rpm	6000
Cutting feed speed	mm/min	1-10000
Rapid traverse speed	m/min	24 / 20/ 24
Tool magazine		Arm30
Max. tool diameter	mm	112/200
Max. tool length	mm	400
Max. tool weight	kg	18
Tool change time (tool to tool)	sec	3
Machine minimum setting unit	mm	0.001
X,Y,Z axis positioning accuracy	mm	0.012
X,Y,Z axis repeat positioning accuracy	mm	0.008
B axis positioning accuracy	″	10″
B axis repeat positioning accuracy	″	5″
Machine weight	kg	19000
Overall dimension(L*W*H)	mm	5300*3900*3300

Machine Standard Details

MACHINE CONSTRUCT 1. High strength high quality HT300 cast iron 2. long span bed base and vertical column structure	CONTROL SYSTEM Standard: FANUC controller
TAIWAN PRECISION SPINDLE 1. Taiwan BT40 Spindle 8000rpm with ring cooling 2. Passed dynamic balance ISO rating test	TAIWAN TOOL MAGAZINE 1.Taiwan OKADA arm 24 tool magazine . 2. tool change time only 2-3 seconds.
LEAD SCREW AND COUPLING 1 TAIWAN HIWIN famous brand lead screw, 2. lead screw bearing using SKFor NACHI bearing, 3. coupling YC directly connected	TAIWAN PRECISION LINEAR RAILS 1. Taiwan high speed roller linear guide rail, positioning accuracy can reach μm class 2. Brand: HIWIN or PMI
TOOL UNCLAMP CYLINDER Taiwan spindle Tool unclamp cylinder	COUNTERWEIGHT AND AIR STORAGE TANK Use a nitrogen balance cylinder to counterweight and Air storage tank to ensure the stability of spindle tool change
AIR CONDITIONER Standard with Industrial electrical cabinet air conditioner. Cooling the electric box better .	LUBRICATION SYSTEM Automatic centralized lubrication device .
SCHNEIDERELECTRICAL COMPONENTS 1. with Schneidersafety electrical components 2. quick plug as standard	PNEUMATIC COMPONENTS Standard with AirTAC Pneumatic Components
AIR GUN AND WATER GUNHigh-pressure air guns and water guns	TESTING Each machine passed Renishaw laser interferometer testing and ballbar testing
BT40 MILLING CHUCK Standard with BT40 milling chuck .	LOCKING KNIFE BLOCK Standard with lock knife block
CHIP CONVEYOR2 screw type chip conveyor and 1 Chain type chip conveyor

Machine Optional Details
Company Profile
Shandong Luzhong Machine Tool has :
More than 100,000m² of the factory with more than 200 workers.
Strictly QC control with more than 24 steps testing processes.
30+ years CNC machine manufacture experience factory.
24 hours online service at any time.
Trade with customers in more than 150 countries around the word.
Cooperate with the Famous Brand , such as SIEMENS, FANUC , SYNTEC etc.
Support ODM OEM.
Warranty time is 18 months.
Shandong Luzhong Machine Tool Co.,Ltd. Has got many international certifications such as ISO, WIPO, CE, BV, TUV, SGS, and patents. Our machines have been exported to more than 100 countries and regions, covering North America, Europe, Europe, South America, Middle East, and Southeast Asia. And we provide long-term overseas technical guidance and after-sales service for these countries.
Adhering to the "Best Machine by LUZHONG" purposes, We provides better quality machines, more efficient and thoughtful after -sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
