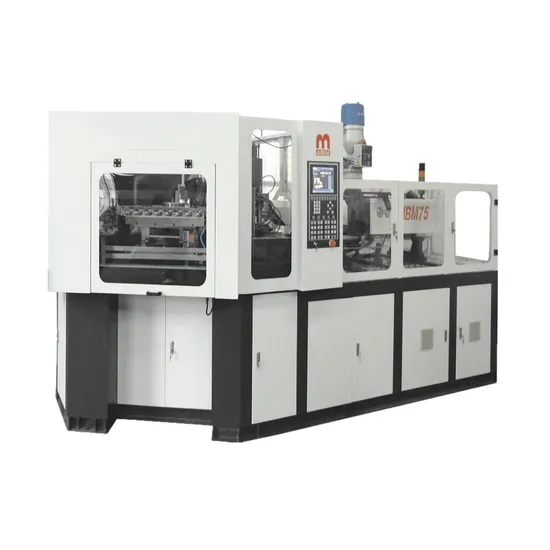

IBM Injection Blow Molding Machine

Product Description

Product Description
Products Variety


Technical Parameter

NO	ITEM	UNIT	IBM35	IBM45	IBM65	IBM75
1	Diameter of screw	MM	40	45	50	50
2	Injection weight	G	176	260	314	400
3	Heating capacity	KW	7.2	10	10	12
4	Control area of electric heating	QTY	3	3	3	5
5	Clamping force of injection	KN	350	450	650	750
6	Clamping force of blow	KN	40	78	89	150
7	Opening stroke of mold platen	MM	120	120	140	140
8	Injector stroke	MM	220	220	220	220
9	Max. plate size of die(L*W)	MM	420*340	580*390	740*390	840*460
10	Min. dia. thickness(H)	MM	180	240	280	280
11	Motor power	KW	11/15	18.7/22	17&22/30	18.7&23/30
12	Heating capacity of mould	KW	2.8	4.0	5.0	6.0
13	Pressure of hydraulics system	MPA	14	14	14	14
14	Min.workingpressure of compressed air	MPA	0.8	1.0	1.0	1.0
15	Discharge rate of compressed air	M3/mi n	≥0.7	≥0.8	≥0.8	≥0.8
16	Consumption of cooling water	M3/hr	3	3	3	3
17	Dimension of machine (L*W*H)	MM	3100*1200*2 200	3500*1400*2 300	4000*1280*2 350	4000*1700*200 0
18	Machine weight	T	3.6	5.5	6.5	10
19	Suitable bottle Range	ML	3-600	5-600	5-800	5-1000
20	Max. Height of bottle	MM	≤175	≤200	≤200	≤200
21	Max. dia. of the bottle	MM	≤75	≤80	≤80	≤100
22	Total power	KW	25	35	45	50

Our advantages
1. The clamping framework adopts single-crossbeam, double poles, which enlarge the space of seting mould, much easier to install mould.
2. Unique PREFlLL technology and variable displacement pump pressurizing technology are applied to hydrauic system to achieve high eficiency and more reliable.
3. Specialized control system: Adapting the specilied controler and software, after completion of machine's commission and parameter seting, all theselled parameters can make use of SD card for storage and re-installinto other machines, it is realy veny convenience for function testing and afelservice.
4. Eneroy saving: Refer to our testing resul, this svstem can save minimum 35% of eneray consumption at any machine. And also it can joint togetheiwth special boards and software instaled to achieve the totally energy consumption and unit product energy consumption, and help the customers to understand the production cost.
5. Stripper station adopts long-distance digital laser sensor for detection, to protect mould safety.
6. Stripper station installs light curtain, to protect personal safety.
7. Optional servo rotary, (Patented product ,patent number:2L2014 2 0196619.X) precise, long using time, easy maintenance, save energy.
8. Optional iniection with all-electric way, replacing hvdraulic way (Practical patent products, patent number: 150582G0287N).
9. CE certificate.
Sample Display


Detailed Photos

Company Profile
FAQ
1. Why choose us?
We not only supply the mold, but also the machine and related parts. Port city, convenient transportation.
2. How to ensure the quality of mould?
Debug on the machine before delivery to ensure no quality problems before delivery.
3. What about our after-sales service?
There is a perfect after-sales service system, super long warranty period, any product problems can contact us at any time.
4. About the price?
Higher discount for bulk purchase, price can be negotiated.
5. How long will delivery take after placing an order?
High production efficiency,short delivery time, specific circumstances can be negotiated.

---
