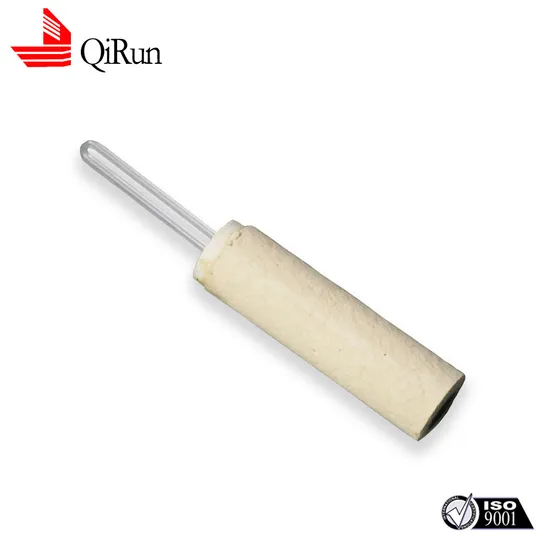

Temperature Sensor Probe Glass Tube Multi-Use Thermocouple

Product Description

Product Description
Smelting Furnace Expendable Immersion Thermocouple is used to measure metal in steelmaking and ironmaking processes (including electric furnace, converter, refining furnace, LF furnace, oxygen blowing station, ladle, ladle, tundish, etc.) Temperature sensor designed for liquid temperature.
When using, it only needs to be connected by the temperature measuring gun, and then manually or mechanically inserted into a high-temperature melt of a certain depth, and the obtained thermoelectromotive force is transmitted to the intelligent display device to obtain the temperature value of the melt.
Product Parameters

Composing materials	Model	Allowable Tolerance		Max Temperature Limit	Measured Rate
		P	J
PtRh10%-Pt	QR-KS602	≤±5ºC	≤±3ºC	1650ºC	≥98%
	QR-KS604
PtRh13%-Pt	QR-KR602
	QR-KR604
PtRh30%-PtRh6%	QR-KB602			1750ºC
	QR-KB604
WRe3%-WRe25%	KW-602	≤±7		2000ºC
Diameter of tube	ID:Ф18.1mm;OD:Ф30mm
Total Length	300mm /600mm /900mm /1200mm(Customized).

Detailed Photos Operation:
1, To select the appropriate length of protective paper tube and temperature measuring gun according to the object and scope of the measurement
2, Attach the disposable thermocouple to the temperature measuring gun, make the pointer of the secondary instrument (or digital display) back to zero. Begin to measure.
3, It is recommended to insert the disposable thermocouple in to the molten steel at the depth of 300-400mm. Do not touch the furnace wall or scum. Bring up the temperature measuring gun immediately after the secondary instrument get results. The soak time of disposable thermocouple in molten steel should less than 5 seconds, otherwise the gun may be burned out.
4, Change the used thermocouple into a new one, and pause for a few minutes to get ready for the next measurement.
Company ProfileCangzhou Qi Run Detecting Instrument Co. Ltd. was founded in 1996, is a professional production company for metallurgical industry detection, sensor and instrument. The company covers an area of 50000 square meters, construction area of 25000 square meters,and has more than 200 employees. Qi Run owns many workshops such as matel product, refractory product, paper tube, equipment manufacturing, sampler sensors, research and other major production workshops.More than 95% of the parts have achieved self-control, which effectively reduces the cost and enhances the competitiveness of us.Now our company Qi Run has achieved the annual production capacity which are listed below: Converter sublance 500 thousand pieces per year, sampler 3 million pieces per year,sampler parts 5 million sets per year, thermocouple 60 million pieces per year, oxygen probe 100 thousand pieces per year. Our products are supplied to not only domestic steel corporations but also many other countries and regions such as USA,Japan,Australia,Thailand,Mexico,Columbia,Pakistan and so on.
Certifications
FAQQ: Are you Factory?
A: Definitely, we are a factory.
Q: What Parameters should I provide to you for a proper quotation?
A: Application, pore size, dimension,, quantity, packing requirements, trade terms.Q: How can you control your quality?
A: For each production processing, we have a complete QC system for the chemical composition and physical properties. After production, all the goods will be tested, and we have the quality certificates with ISO9001.Q: What is your lead time?
It usually needs about 15- 20 days after receiving the PO.
Q: Do you provide Samples?
A: Yes, our factory provides samples for testing, pls send detailed parameters to us. (if customized, withdrawing is best) The samples will be charged or free according to the specific requirements.
Q: What are the Payment Terms?
A: We accept T/T, L/C, etc.Q: How can I get samples?
A: We are honored to offer you the samples.
Q: What about your Packing?
A: We provide carton boxes, pallets, etc. OEM packing is available too.
Q: Do you have R&D services?
A: Yes, we have an R&D department to assist you in new product development.Q: Does your company accept customization?
A: We accept OEM service.
Q: Can we visit your company?
A: Yes, for sure, you are welcome to visit our company.

---
