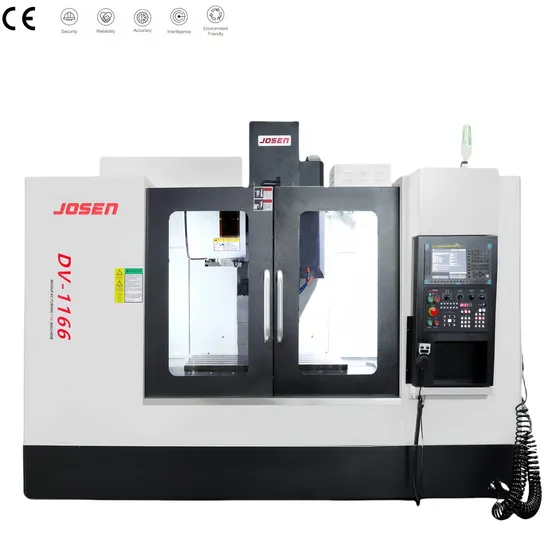

DV-1166 Monthly Deals 3 Axis CNC Machining Center CNC Vertical Machine 10000rpm

Product Description

DV-1166 Monthly Deals 3 Axis CNC Machining Center CNC Vertical Machine 10000rpm
Product Description
Basic Info

Number	Name	Number	Name
1	FANUC 0I-MF CNC controller	10	Chip pan and water tank
2	Full cover shroud	11	Transformer
3	Automatic lubricant system	12	Spindle air curtain dust protection system
4	Ground bolts and spacers	13	Mechanical, electrical and operating instructions
5	Tool-box	14	Rigid tapping
6	Work light	15	Electrical box heat exchanger
7	Warning light	16	Machine cleaning water gun
8	M30 automatic power-off system	17	Three-axis slide telescopic shield
9	Portable chip blowing air gun	18	24-blade arm type tool magazine

Product Specification

Main technical parameters	Unit	DV 855	DV 1166	DV 1266
X-axis travel	mm	800	1100(Total travel 1000)	1200
Y-axis travel	mm	500	620	620
Z-axis travel	mm	550	600	600
Distance from nose of spindle to table surface	mm	120-670	125-725	125-725
Working table size (X*Y)	mm	1000*500	1200*600	1300*600
Table T-slot size (width * number of slots * spacing)	mm	18*5*80	18*5*100	18*5*100
Max. loading capacity of working table	KG	600	900	1000
Spindle motor (continuous/30 minutes)	kw	7.5/11	11/15	11/15
Spindle speed	rpm	10-10,000	10-10,000	10-10,000
Spindle inner taper bore		BT40	BT40	BT40
X/Y/Z axis motors	kw	1.8/1.8/3	3/3/3	3/3/3
Rapid feed rate (X/Y/Z)	mm/min	48000/48000/48000	36000/36000/36000	36000/36000/36000
Fastest cutting feed rate	mm/min	1-10,000	1-10,000	1-10,000
Tool magazine capacity (standard/optional)	set	24	24/30	24/30
Tool magazine form		Tool disc type	Knife disc type	Knife disc type
Tie rod bolts form		MAS-P40-1(45°)	MAS-P40-1(45°)	MAS-P40-1(45°)
Maximum tool diameter of adjacent tools		Ø80	Ø80	Ø80
Max. tool diameter of empty adjacent tool		Ø150	Ø150	Ø150
Maximum tool length	mm	300	300	300
Maximum tool weight	kg	7	8	8
Positioning accuracy (full stroke)	mm	±0.005	±0.005	±0.005
Repeat positioning accuracy (full stroke)	mm	±0.003	±0.003	±0.003
Controller		FANUC 0I-MF	FANUC 0I-MF	FANUC 0I-MF
Water tank capacity	liter	220 (rear drainage)	270 (rear)	270 (Rear row)
Pneumatic pressure requirements	kg/cm2	6	6	6
Power Specifications		AC380±10%,3 phase,60Hz/50Hz	AC380±10%,3 phase,60Hz/50Hz	AC380±10%,3 phase,60Hz/50Hz
Electricity demand	KVA	25	50	30
Floor space (L*W)	mm	2500*2800 (rear row)	2780*3150 (rear row)	3250*3150 (Rear row)
Machine height (maximum)	mm	2800	2865	2865
Machine weight	T	5.1	6.5	6.6

Left elevation

Right elevation

Our Advantages
VMC Machine Center Features: High quality resin sand Taiwan spindle Taiwan ball screw and locking nut Taiwan pressure cylinder Taiwan linear railway Japanese NSK bearing germany R+W coupling Automatic lubrication system Chip conveyor at optional.
Machine Center Application: This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
Detailed Photos

Company Profile

Packaging & Shipping

FAQ

1. What is your product range?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.
2:What kind of controllers do you use on machines?
A :Siemens, GSK, Fanuc, Syntec etc. You can choose as your request.
3. What is your trade terms?
A : EXW, FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me model or technical parameter you need, tell us what you want to do by using CNC machining center, we can provide machine with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5: What's the payment terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
6. What about the after sale service?
We provide one year warranty, if any parts broken, we will send you a new one for free.

7.Before sending me an inquiry on our machine, it is better for you to provide me the following information?
1)Your metal workpiece size. Because in our factory, we have different models according to working area.
2)Your workpiece materials.
Aluminum/Steel/Iron/Titanium Alloy?
3) You also can send us the drawing of your workpiece, so that we can have a moe careful check and give your more accurate suggestions.

---
