Metal CNC Lathe Cutting Tool with Vmc855 High Precision Features

Product Description

Product Description

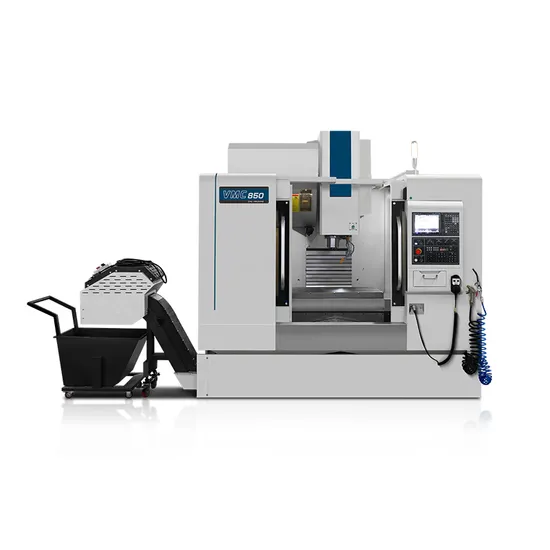

The 4-axis VMC-850 is a pinnacle of high-performance CNC vertical machining centers, meticulously developed and manufactured by Liaocheng Wayne New Materials Co., Ltd. This machine embodies unparalleled rigidity, unmatched speed, and impeccable precision, setting new benchmarks in operational excellence and advanced capabilities. Each casting has undergone secondary tempering, ensuring extraordinary structural rigidity and stability. The high-rigid C-design structure and reinforced machine ribs further enhance its robustness. Manual scraping of all contact surfaces guarantees enduring accuracy. The X/Y axes offer dual guideway options-ball bearing and roller guideway-customizable to meet specific customer requirements. The Z-axis features a roller guideway, providing exceptional rigidity, minimal noise, and reduced friction. Equipped with an air tank for manual water drainage and a directly connected spindle achieving speeds up to 10000RPM, this machine is the optimal choice for efficiently machining complex parts.

Main Features
Mitsubishi M80 control system Ultra-fast and precision spindle Exceptional chip flushing system Superior structural design High rigidity of the entire machine Optimal worktable size: 500mm*1000mm Impressive load capacity of worktable: 200kg

ITEM	MODELS	VMC850
WORKTABLE (WIDTH*LENGTH)	mm	500x1000
DISTANCE BETWEEN T SLOTS	mm	5-18x100
MAX LOAD BEARING OF WORKTABLE	kg	600
X/Y/Z AXIS TRAVEL	mm	800/500/500
DISTANCE FROM SPINDLE NOSE TOWORKBENCH	mm	110-810/110-610
SPINDLE HOLE TAPER	-	BT40
SPINDLE SPEED RANGE	r/min	12000
SPINDLE MOTOR POWER	kW	7.5
X/Y/Z RAPID FEED SPEED	m/min	36x36x36
MAX CUTTING FEED SPEED	mm/min	12000
TOOLS MAGAZINE CAPACITY	pcs	24
X/Y/Z POSITION ACCURACY	mm	0.005
X/Y/Z RE-POSITION ACCURACY	mm	0.003
MACHINE DIMENSION	mm	2495x1970x2360
MACHINE WEIGHT	kg	5000

Standard Configuration for VMC Series 1. Comprehensive full cover shield
2. SAdvanced self-lubrication system
3. Efficient working lights
4. Warning indicators
5. Working condition alert lights
6. Self-powered electrical shutdown system
7. Clean air gun, water tank, and transformer
8. Spindleair curtain and dust control system
9.High-speed 10000 RPM spindle
10. Worktable cleaning water gun
Optional Configuration for VMC Series 1. 24-disc manipulator tool magazine
2.Efficient crawler chips remover
3. NCPrecision rotary table (4 Axis)
4. CTS
5. Advanced tooldetection system
6. AJO
7. High-speed 12000 & 15000 RPM direct connection spindle
8. Oil mist purifier
Detailed Photos

Packaging & Shipping
FAQ
1. Is it all right to make customer's own brand name? A: yes. we are available with OEM

2. Are you a manufactuer or trading company?
A:We are the manufacturer with Laser machine and CNC lathe machine

3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?
A: FOB Qingdao.

5. What's your payment term?
A: T/T OR L/C at sight.

---
