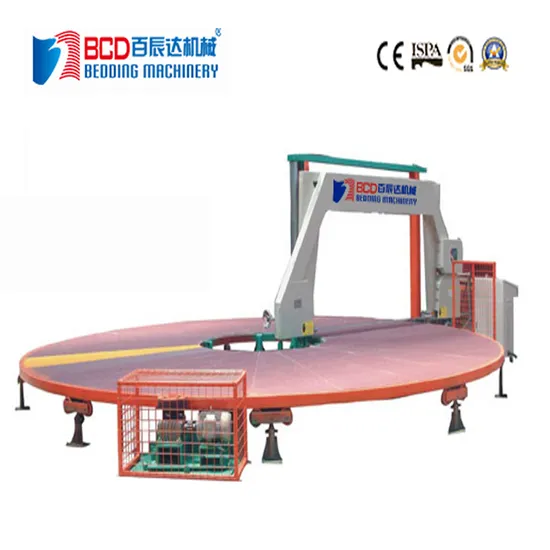

Model Bypq Foam Sponge Carrusel Slicing Cutter Machine

Product Description

Foam Disc Slice Cutting Machine (BYPQ)
Main application and performance
This machine is mainly used for continuous horizontal cutting of multi foam blocks. Its feature as: The most advanced inverter speed controller technology, fully diigital controlling, accurate cutting, high reliability, high work efficiency. The max. Diamter can beφ 10.5M(newly developped), it can continuous cut foam blocks at W2150× L4500mm. (Vacuum work table is optional).

Model no.	BYPQ-60	BYPQ-70	BYPQ-100
Cutting size	W1.5×L2×L1.2M (4pcs)	W1.5×L2×L1.2M (5pcs)	W1.5×L2×L1.2M (8pcs)
Cutting size max.	W1.5×L2×L1.2M (4pcs)	W2.15×L3×L1.2M (3pcs)	W2.15×L4.5×L1.2M (3pcs)
Total power	8.12KW	8.92KW	10.52KW
Table rev	0~3.5r/min	3~3.0r/min	0~2.0r/min
Blade length	8940mm	10000mm	10240mm
Table dia.	φ6M	φ7M	φ10.5M
Slice thickness	2~150mm	2~150mm	2~150mm
Machine weight	3300Kg	3500Kg	3800Kg
Machine dimension	L6900×W6000×H2400mm	L7900×W7000×H2400mm	L11.500×W11000×H2400mm

---
