Agricultural Self-Propelled Wheel Type Earth Pea Peanut Combine Harvester

US$15,000.00-17,000.00 1 Piece (MOQ)

Basic Info.

Power Source
Diesel
Harvest method
Picking
Drive Type
Gear Drive
Transmission
Soft Shaft
Portable Harvester Type
Combine Harvester
Color
Red
Condition
New
Application Field
Agriculture
Warranty
1 Year
Engine
46HP
Rubber Track
280mm*46*90
Ground Clearance
190mm
Weight
2400kg
Specification
4530*2000*2550
Origin
China
HS Code
8433510090
Production Capacity
100000pieces/Year

Product Description

Product Description

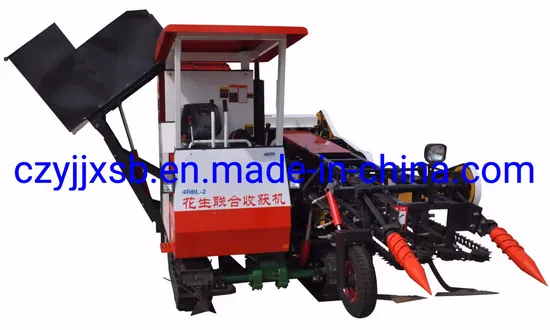

Combine Peanut Harvester/Groundnut Harvester/Earthnut Harvester

Peanut Harvester besides having the functions of digging, fruit removal, cleaning,
collecting which peanut combine harvester should possess,
it has following advantages:
1. it can open its way by itself, which saves time and cost of opening ways by man.
2. no need outside power to haul or transportation, convenient and swift transfer,
which saves troubles of loading vehicle and cost of transporting vehicles.
3. when harvesting, vehicles walks in the ridge furrow, do not press the ridge surface,
which facilitate recycling of fallen fruits and reproduction.
4. simple structure, low cost of using, convenient repair and maintenance.

Detailed Photos
1.When the harvester moves forward, the digger blades get into the ground and dig the peanut along with lifting the grain by the grain lifter. 2.The peanut plants are gripped and conveyed up and behind by gripping chain. 3.The root of peanut plant enters the picker. The peanuts are picked by two counter rotating rollers with long scraper.4.The peanut straws are conveyed continually and laid neatly on the harvested ground by the plant dump chain. 5.The peanuts are separated with the soil and wastes by blower and vibrating screen. Then they are conveyed to storage hopper by traversing conveyor, lifter and screw conveyor. Then we get peanuts from the hopper.
Product Parameters
Model 4HD-2
Working Wide(mm) 600-900
Weight (KGS)
2400
Main Standard Configuration
Working Dimension L*W*H (mm) 4530*2000*2550
Ground Clearance(mm) 190
Work Efficiency (Ha./Hr) 0.13-0.2
Total Loss Less than 2.0%
Total Imputity Less than 1.5%
Total Breakage Less than 1.5%
Diesel Engine
Model
Type Vertical, Water-cooling, 4*4 strokes Direct Inject, Turbocharger
Rated Power/Rotating Speed 46HP/2400rpm
Rubber Track
Size (mm) 280mm*46*90 mm
