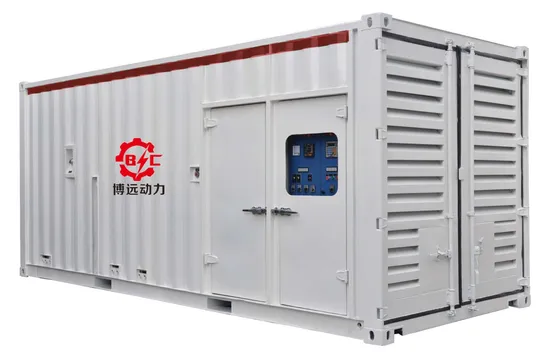

500kVA 400kw Cummins Industrial Silent Diesel Generator with Kta19-G3a Engine

Product Description

Diesel Generator		Fuel Consumtion
Genset Model	BY-C550	100%	109.6 L/hr
Frequency / Voltage	50Hz/400V	75%	84.3 L/hr
Phase	3Ph	50%	57.8 L/hr
Prime Power	400kW/500kVA	Dimension
Standby Power	440kW/550kVA	Type	Standard Silent Type
Engine Brand / Model	KTA19-G3A	Length (L)	4580mm
Alternator Make /Model	Brushless,self-exciting	Width (W)	1700mm
Control Panel	Deepsea DSE6120MK3 / Smartgen HGM6120N	Height (H)	2230mm
Base Frame / Silent Canopy	Robust Structure/Corrosion Resistant	Optional
Circuit Breaker Type	3pole MCCB( 4P optional)	Genset Color
Built in Base Fuel Tank Capacity	8-10 hrs	Battery Charger and ATS
Noise Level	82 dB(@1m)	Water Heater
Battery	Maintenance free Lead Acid	Daily fuel tank

50Hz Cummins Industrial Silent Diesel Generators Overview

Model	Standby Power		Prime Power		Engine		Alternator			Fuel Consumption	Dimension
	KVA	KW	KVA	KW	Model	Displacement	Stamfo*d	Leroy-somer	BYG	@ 100% load PRP( L/h)	mm*mm*mm
BY-C550	550	440	500	400	QSZ13-G3	13L	HCI 544C	LSA 47.3 M7	544C	101	4580*1700*2230
BY-C550	550	440	500	400	KTA19-G3A	19L	HCI 544C	LSA 47.3 M7	544C	109.6	4580*1700*2230
BY-C650	650	520	590	472	KTA19-G8	19L	HCI 544E	TAL-A473-E	544E	138	4880*1700*2230
BY-C688	688	550	625	500	KTAA19-G6A	19L	HCI 544Fs	TAL-A473-F	544Fs	127.8	5280*1800*2530
BY-C713	713	570	650	520	QSK19-G4	18.9L	HCI 544F	TAL-A473-F	544F	145	5280*1800*2530
BY-C825	825	660	750.0	600	KTA38-G2	38L	S6L1D-C4	TAL-A49-B	544G	167	6880*2250*2530
BY-C880	880	704	800	640	KTA38-G2B	38L	S6L1D-C4	TAL-A49-C	634C	167	6880*2250*2530
BY-C1000	1000	800	900	720	KTA38-G2A	38L	S6L1D-D4	TAL-A49-D	634D	191	6880*2250*2530
BY-C1100	1100	880	1000	800	KTA38-G5	38L	S6L1D-E4	TAL-A49-E	634E	209	6880*2250*2530
BY-C1250	1250	1000	1125	900	KTA38-G9	38L	S6L1D-G4	LSA 50.2 M6	634F	251	40HQ
BY-C1375	1375	1100	1250	1000	KTA50-G3	50.3L	S6L1D-H4	LSA 50.2 M6	634G	254	40HQ
BY-C1375	1375	1100	1250	1000	QSK38-G5	37.7L	S6L1D-H4	LSA 50.2 M6	634G	271	40HQ
BY-C1500	1500	1200	1400	1120	KTA50-G8	50.3L	S6L1D-H4	LSA 50.2 L7	734B	289	40HQ

1. Specialized manufacturer and professional assembly.
2. A wide range of engines, alternators to meet different needs.
3. Severe quality control to supply endurable and satisfactory products.
4. Reliable and considerable after-sale service.
5. Various assessories for optional choice.
6. Customized service is available.
We BYC power is an experienced generator manufacturer, which is located in Fuan city of Fujian, China. Our products not only win a good reputation in the domestic market, but also have great popularity with the customers overseas. We are dedicated to supplying our customers with the most suitable products at a compective price.
BYC POWER is always ready for your consulting. We were and will be responsible for each piece of our product.

---
