Product Details
Product Description
Product Description
Introduction

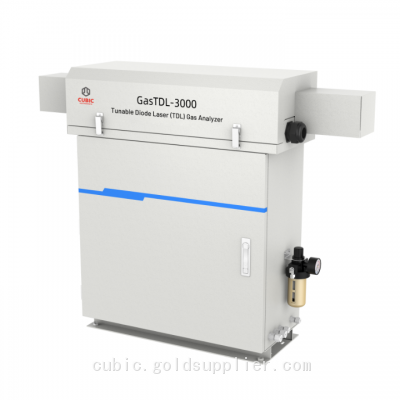

TDL-3000 is an extractive gas analyzer adopts TDLAS (Tunable Diode Laser Absorption Spectroscopy) technology. With high-temperature heating trace technology to avoid water condensation and sour gas loss, the extrative-type analyzer can be used to accurately reflect the concentration of sour gases like NH3, HCL or HF in real time, and also provide reliable data support for flue gas cleanning system control and environmental monitoring.
Features
High-precision: Using specific laser wavelengths for measured gases, GasTDL-3000 can respond faster to ultra-low level gases and accurately detect specific components from gas mixtures without cross-interference.
Ultra-low range measurement: Using multiple reflection gas chambers, providing longer optical paths and lower detection limits.
Extractive method: Effectively reducing the influence of dust, temperature, and pressure fluctuations in the flue.
Good environmental adaptability: Suitable for high-temperature, high-humidity, strong corrosion, dusty and other harsh environment.
Easy installation: Compact wall-mounted design adapatble for different site installation conditions.
Low maintenance frequency: Easy to use and calibrate, no professional operator required and no cumbersome maintenance needed.
Specifications
Performance Parameter
Measurement Components: NH3, HCL and HF
Measurement Principle: TDLAS
Measurement Range:
NH3: Min: 0-20ppm, Max: 0-10000ppm
HCL, HF: Min: 0-100ppm, Max: 0-10000ppm
Resolution: 0.1ppm
Precision: ±2% F.S.
Response Time: ≤20s
Zero Drift: ≤±2%FS
Working Parameter
Working Temperature: (-10~+55) °C
Working Power Supply: 220V AC, 50Hz
Backflush Gas: Clean and Dry compressed gas without oil
Warm-up Time: 30min
Heating Temperature: 190°C
Interface Signal
Communication: RS485, RS232
Output Mode: 4-20mA, Max load 900Ω, relay output
Application
SCR/SNCR, coal-fired power plant, aluminium manufacturer, glass plant, cement plant, fertilizer plant, waste incinerator
For more details, please feel free to contact our sales: sales@gasanalyzer.com.cn.
>>
