1. Introduction

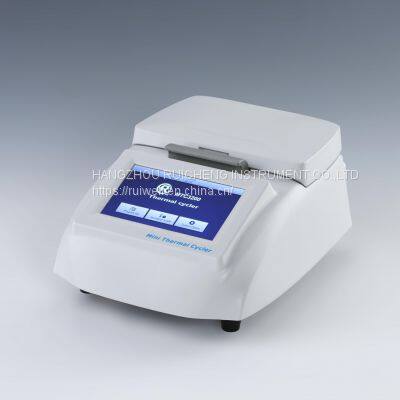

Mini Thermal Cycler is a compact, accurate and economical thermal cycler, designed to fit lab’s basic thermal cycling needs. The operation of the thermal cycler is controlled by a 5-inch color touch screen. It has a capacity for 32x0.2ml tubes. The wels are arranged in a 4x8 format, allowing the block to accept strips of 8 as well as individual tubes. Excellent block uniformity ensures consistency sample to sample. Fast incubation function meets the experimental needs of denaturation, enzyme digestion / enzyme linkage, ELISA, etc. With a small footprint, the Mini Thermal Cycler will fit almost anywhere.
Features:
u Capacity: 32x0.2ml tubes and 4x8 tube strips
u Heating/cooling method: Peltier
u 5-inch intuitive color touch screen—for easy programming of users.
u 100 typical programs can be stored in memory and easily recalled.
u The block heats and cools very quickly—at rates as fast as 4°C/sec.
u The heated lid is self adjusting—the spring loaded platen in the lid comes firmly into contact with the tops of the tubes to prevent sample evaporation and condensation.
u Temperature of heated lid can be changed or the heating function of the lid can be turned off.
u After a run, samples can be held at 4°C.
u An on-screen report is available at the completion of a run.
2. Parameters
Model
| MTC3200
|
Capacity
| 32x0.2ml tubes, 4x8 tube strips
|
Temp. setting range
| 0℃~100℃
|
Temp. control range
| 4℃~100℃
|
Temp. accuracy/uniformity
| ≤±0.25℃/≤±0.25℃
|
Max. heating rate
| 4℃/sec
|
Max. cooling rate
| 2℃/sec
|
Heated lid temperature
| RT.+5℃~110℃, user adjustable
|
Temp. display resolution
| 0.1℃
|
Temp. control
| Simulated sample or block
|
Display
| 5-inch color touch screen, 800x480 Pixel
|
Communication interface
| USB(1 port)
|
Program memory
| 100 programs
|
Time increments/decrements
| 1~120s
|
Temp. increments/decrements
| 0.1~9.9℃
|
Storage at 4℃
| Yes
|
On-screen report
| Yes
|
Power
| 200W
|
Voltage
| AC100~240V, 50-60Hz
|
Fuse
| 250V 3A Ф5×20
|
Dimension(mm)
| 264x200x125
|
Weight(kg)
| 2.3
|
>>
