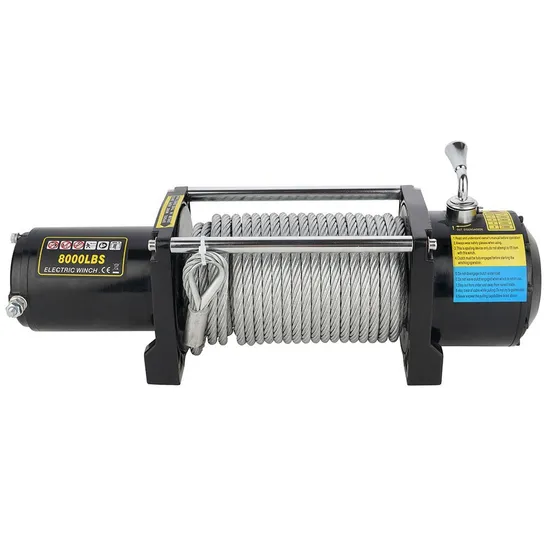

Durable High Satisfaction Carton and Pallet Inexpensive 12V Electric Winch

Product Description

Pure copper motor and power cable, waterproof control box, steel gears
12V DC 8000 lbs rated line pull 4.1 HP pure copper motor Waterproof control box 3m handheld wired remote Pull-and turn clutch handle 3-stage planetary gearing with 235:1 ratio 8.3mmx26m steel wire rope Heavy duty clevis winch hook Stainless steel 4-way roller fairlead 100% full load holding automatic mechanical brake IP68-rated waterproof and dustproof winch 8000 LBS FEATURES AND SPECIFICATIONS

Rated Line Pull	8000LBS (3629kgs) single line
Motor	3.0kw/4.1hp, permanent magnet
Control	Remote switch, 9.8ft(3.0m)lead
Gear train	3 Stage Planetary
Gear train ratio	235:1
Clutch	Sliding Ring Gear
Braking Action	Automatic In-The-Drum
Drum Size	Φ2.5"(64)mm×(8.8")233.5mm
Cable	Φ8.3mmX26m
Overall Dimensions	19.8"x6.3"x8.5"(503mm×160mm×217mm)
Mounting Bolt Pattern	255mm×114mm Φ11
Weight	N.W.33kg G.W.35Kg
Packing Size	610×350×270mm

PULL, SPEED, AMPERES, VOLTS

Line pull lbs(kgs)	Line speed ft/min(m/min)	Current A
0	9.8(3.0)	30
2000(907)	7.5(2.3)	120
4000(1814)	4.9(1.5)	210
6000(2722)	3.9(1.2)	250
8000(3629)	2.9(0.9)	270

LINE PULL AND ROPE CAPACITY IN LAYER

Layer	Rated Line Pull lbs(kgs)	Total Rope on Drum ft(m)
1	8000(3629)	13(5)
2	6540(2966)	23(11)
3	5550(2517)	69(21)
4	4800(2177)	92(28)

---
