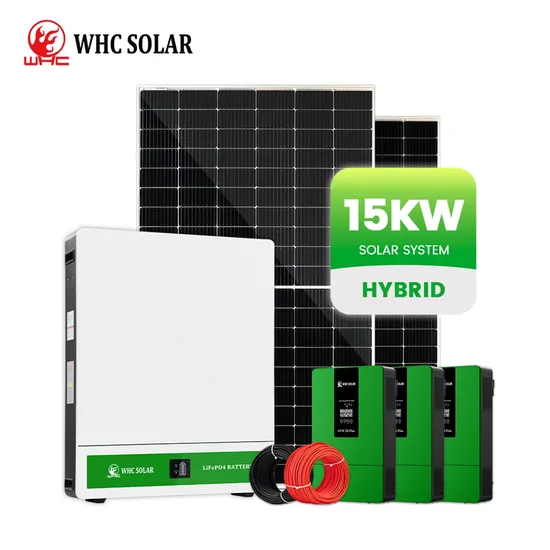

15KW Solar Power System 30Kwh Solar Lithium Battery Home Energy Storage System

Product Description

Product Description
WHC Solar Energy System also known as off-grid solar system is the most cost effective type for the solar system. It is a complete solar setup that comes with highly efficient solar panels.off-grid solar inverter, lithium ion battery or gel battery, and other standard solar accessories. This solar system will not only provide you continuous electricity but will also reduce your heavy electricity bills.
Product Parameters

WHC-HVM-15KW-30720WH
Item	Model	Specifications	Quantity
Solar Inverter	HVM Plus 5KW Solar Inverter	48V 5KW &MPPT500V 80A	3 pcs
Solar Panel	WHC-550M-144 Solar Panel	Mono 49.6V 450W	27 pcs
Solar Battery	WHC-P-51.2V300AH Lithium Battery	Lithium Battery 15360Wh	2 pcs
	PV Cable 100m	PV 6 MM²	4 pcs
Accessories	Battery Cable	25 MM²	4 pcs
	MC4	MC4 Connecter	12 pcs
	DATA Line	Communication Cable	4 pcs
	Mounting System	Roof/Ground Support	1 pc

Detailed PhotosSolar Hybrid Inverter1. WHC 48V 5KW Solar Inveter 2. 48V 5KW 3. PV Input:500V 80A 4. Output:220V 50Hz 5. Performance And Extend Lifecycle
6.High Efficiency Pure Sine Wave Inverter Mono Solar Panel 1. Model:WHC-550M-144 2. Max Power Voltage: 41.97V 3. Max Power Current:13.11A 4. Open Circuit Voltage: 49.6V 5. Short Circuit Current: 14.05A 6. Dimensions:2279*1134*35mm
7. Weight: 27.3KGSolar Lithium Battery
1. WHC-P-51.2V300Ah Lithium Battery2. Nominal Votage: 51.2V(48V)3. Capacity:300AH 4. Energy: 15360Wh5. Installation: Wall Mount6. Sizes: 660*820*140mm PV cable 1. Solar Cable 100m 2. Type:RVV1*6mm2
3. Material:Pure Copper
4. Temperature Rating:-40°C-120°CMore than 25 YearsMC4 Connector1. MC4 Solar Connector2. IP68 Waterproof
3. High Quality.Safe ProtectionQuick Operation.Copper Mc4Connector.
