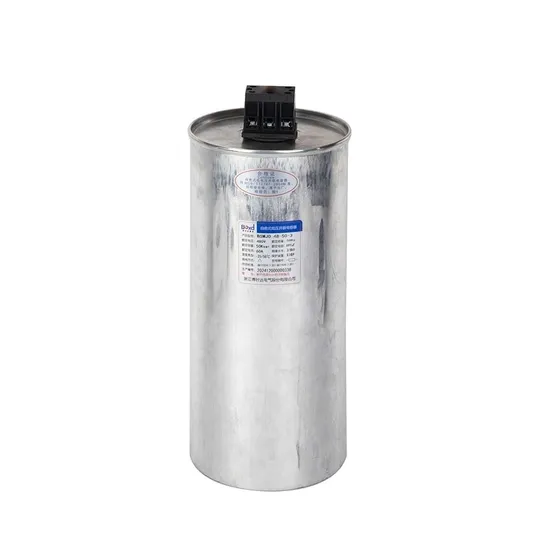

Low Heat Design OEM ODM Custom Low Voltage Shunt Self Healing Capacitor

Product Description

Product Description
INTELLIGENT CAPACITOR
BOSD-CMS series intelligent capacitors are based on two or one low-voltage power capacitors and adopt the latest technological achievements such as microelectronics hardware and software technology, micro-sensor technology, micro-network technology, and electrical manufacturing technology to make them intelligent, miniaturized and modular. It is a major breakthrough in low-voltage power reactive power automatic compensation technology and can be flexibly used in various occasions of low-voltage reactive power compensation, changing the structural mode of traditional reactive power automatic compensation equipment.We can meet a large supply capacity of 20,000 units per month, catering to the needs of various industries, including yours, user, who requires a substantial quantity for their operations.Product Parameters

INTELLIGENT CAPACITOR SPECIFICATION
Product Name	Self-healing low voltage shunt capacitor
Keywords	Device Intelligent Capacitor
Model	BCMJ
Overvoltage	1.1Un
Overcurrent	Maximum 1.3In
Surge Current	200ln
Dielectric Loss	</=0.25W/kvar
Capacitance Tolerance	5%/+10%
Test Voltage	2.15Un,10s
Test Voltage,End-to-Shell	3000VAC, 10S
Cooling	Natural cooling
Maximum Allowable Humidity	95%
Installation location	</=3000m
Dielectric	high-quality polypropylene film
Discharge Resistor	external discharge module
We support customized capacitors for various needs

Detailed Photos
PRODUCT FEATURES
It realizes the perfect combination of measurement and control technology and synchronous switch, controls the movement speed of the switch, eliminates bounce, improves life, tracks and corrects the closing phase angle, and achieves a switching life of millions of times. Compared with existing similar intelligent power capacitors, it has many advantages such as high reliability, low failure, low power consumption, and long life.WORKING CONDITIONS
After the capacitor is disconnected from the power supply, the residual voltage of the capacitor must be reduced to 10% of the rated voltage before it can be put back into operation. Usually, this time takes about 200 seconds, so the controller should be equipped with a lock time function for re-entry after disconnection. If a general controller is used, a quick discharge facility must be installed separately.ELECTRICAL SAFETY
Compensation is carried out in the most appropriate way, various control functions are perfect, and it has the function of high-end power analyzer, complete functions, good performance, and can also be configured with a variety of peripherals to meet different customer needs.PRODUCT PROTECTION
The product has complete measurement and protection functions, and has special protections such as control room body temperature, power grid harmonic content, phase failure, and three-phase imbalance.APPLICATION AREA
The product can be used in multiple units in a building block style. When in use, the main unit is automatically generated, and the rest are slave units, forming a reactive power automatic control system. If a single unit fails, the slave unit will automatically exit without affecting the operation of other units. If the main unit fails, it will automatically exit and generate a new main unit to form a new system, which is highly intelligent. The single capacitor displays the product working condition and electrical circuit condition, and the human-computer dialogue is simple and intuitive.FAQ
Q1. What's the order process?
1)Inquiry-Provide us with all clear requirements (total qty and package details).
2)Quotation-official quotation with all clear specifications from our professional team.
3)Marking Sample-confirm all quotation details and the final sample.
4)Production-mass production.
5) Shipping by sea or by air.
Q2. What terms of payment do you use?
As for the payment terms, it depends on the total amount.
Q3 . How do you ship the products?
By Sea, By Air, By courier, TNT, DHL, FedEx, UPS Etc. It is up to you.
Q4. How would I get a price list for a wholesaler?
Please e-mail us, and tell us about your market with MOQ for each order. We will send the competitive price list to you ASAP.
Q5. What is your product warranty?
We are an ISO9001 & CCC certificated enterprise in China, we supply long-life free maintenance.

---
