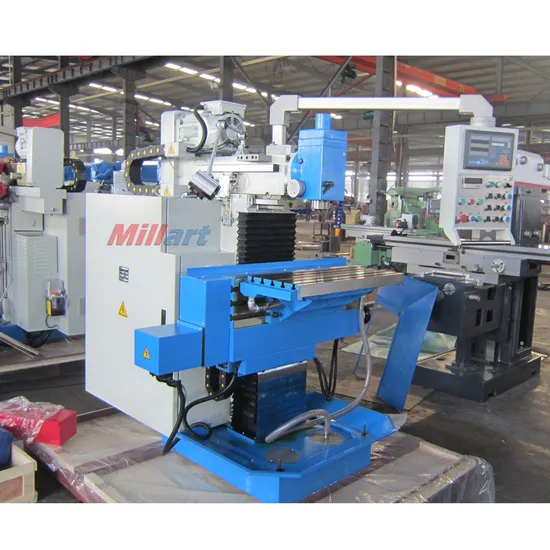

Universal Tool Drilling Milling Machine XL8140, Tool Milling Machine

Product Description

Product Description
Feature:
Featuring High Flexibility , High Accuracy and High Eficiency , the universal tool milling machine has a wide variety of applications, ie drilling, milling & boring on tools, jigs, moulds and other complex jobs in instrument, workshops as well as training.
Specification:

	XL8140
Horizontal table size (L x W)	800 x 400 mm
T-slots (pc*size*center distance)	6*14*63 mm
Vertical table size (L x W)	1020 x 225 mm
T-slots (pc*size*center distance)	3*14*63 mm
Max. table load	200 kg
X/Y/Z axes travel	500/400/400 mm
Spindle taper (H. & V.)	NT 40
Spindle speeds (H. & V., variable)	40 - 2000 rpm
Stroke of vertical pindle quill	60 mm
Feed rate (X/Y/Z axes)	10 - 1000 mm/min
Rapid traverse (X/Y/Z axes)	1200 mm/min
Main motor power	3 7 kW
Feed motor torque (X/Y/Z axes)	7.7/7.7/10 Nm
Machine weight	1550 kg
Machine dimensions (L x W x H)	1500 x 1700 x 1800 mm

Standard accessories:
Horizontal milling arbor & support
Reducing sleeve
Draw bar
Coolant system & chip tray
Automatic lubrication system
Work light
Optional accessories:
Collect chuck & collets
Digital readout (DRO)
Universal boring head
Dividing head
Drilling chuck
Universal table
Company information:
Packaging & Shipping
FAQ
Q: Are you a trading company or a physical factory?
A: We are a specialized physical factory for more than 10 years. Our machines also gained CE certificate, ISO9001 and EAC certificate.
Q: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.

Q: Can you provide customized machine?
A: Yes, we provide customized service for customers to meet different requirements.


Q: Can we visit your factory?
A: Sure, we warmly welcome you to visit our factory at any time. The more you know about us, the more you will trust us! So you can rest assured on our quality machines and our best service.
Q: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q: What is your trade terms?
A: FOB, CIF ,DDP and CFR all acceptable.

---
