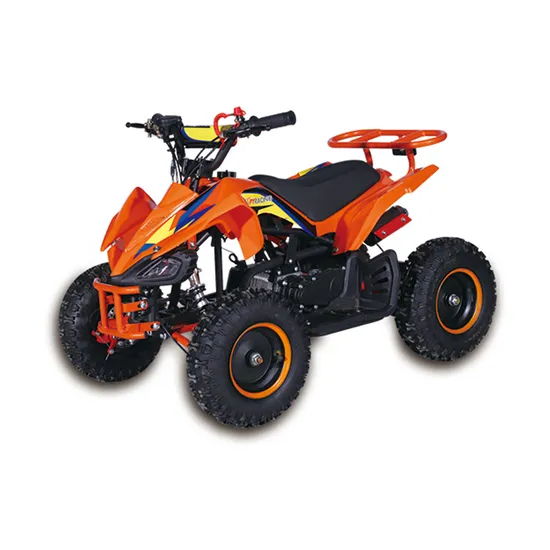

49CC four-stroke cycle quad bike
49CC four-stroke cycle quad bike
Technical data
| Model NO.: | KA49ATV-1 |
| Engine: | 49cc FOUR stroke ,single -cylinder ,Air cooled |
| Bore & Stroke: | 44*33mm |
| Starting: | Pull start |
| Drive: | Chian Drive |
| Transmission: | Automatic, Single Forward |
| Suspension: | Dual shock absorber.Single shock absorber |
| Brake: | Dual Disc brake,Singlle Disc Brake |
| Tyre: | 4.10-4;4.10-4 or 4.10-6;13*5.0-6 |
| Fuel Tank: | 0.9 L Plastic Tank |
| Seat Heigh: | 49cm |
| Wheelbase: | 69cm |
| Ground Clearance: | 8.5cm |
| Max. Loading: | 50kgs |
| Max. Speed: | 25km/h |
| Product Size: | 100*69*72cm |
| Packing Size: | 101*58*53cm |
| G.W./N.W.: | 42/37KGS |
| Brake Distance: | ≤ 5m at 20 Km/h |
| Container Loading: | 88 Pieces/20"FT, 230 Pieces/40"HQ |
|
