US$2,150.00
|
1 Piece
(MOQ)
|
Basic Info.
Application Field
Agriculture, Forestry
Farming Policy
Dry Cultivating Machinery
Operation
Soil Preparation Machinery, Movable Operation
Arbor Configuration
Horizontal Axis
Overall Dimension
532*288*134
Transport Package
Iron Shellframe Box
Production Capacity
5000sets/Year
Product Description

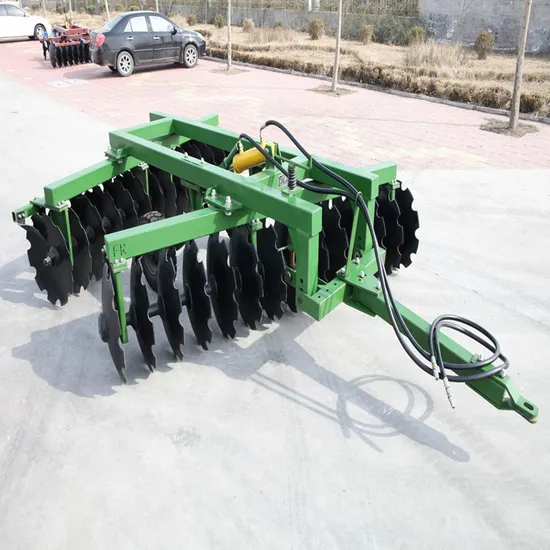

Heavy-duty disc harrow
The series heavy-duty offset disc harrow are mainly used for cleaning away stubble of plants before tillage, or crushing clods after tillage on uncultivated land and in sticky heavy clay soil fields, they can also be used as a plough for primary tillage in dry cultivated fields.
The series products are all fitted with hydraulic rubber wheel for transportation, It is easy to be transported and change direction on the edge of fields.
The series agricultural machinery heavy-duty off-set disc harrow are mainly used for cleaning away stuble of plants before tillage, or crushing clods after tillage on uncultivated land and in stickly heavy clay soil fields, they can also be used as a plough for primary tillage in dry cultivated fields.
The series products are all fitted with hydraulic rubber wheel for transportation, It is easy to be transported and chang directiong on the edge of fields.
Specifications:
| Model | Unit | 1BZ-1.8 | 1BZ-2.2 | 1BZ-2.5 | 1BZ-3.0 | 1BZ-3.4 |
| Overall size | cm | 480*200*134 | 482*244*134 | 532*288*134 | 532*332*134 | 582*376*134 |
| Weight | kg | 1050-1100 | 1250-1300 | 1380-1430 | 1500-1550 | 1650-1700 |
| Working width | m | 1.8 | 2.0 | 2.5 | 3.0 | 3.4 |
| Working depth | cm | 20 |
| Disc space | mm | 230 |
| Qty. of disc | pc | 16 | 20 | 24 | 28 | 32 |
| Dia. Of disc | mm | 660 |
| Ground clearance | mm | >160 |
| Productivity | ha/h | 1.1 | 1.3 | 1.4 | 1.7 | 1.9 |
| Matched power | hp | 65-80 | 75-90 | 80-100 | 90-100 | 100-120 |
| Linkage | | Trailed |
| Model | Unit | 1BZ-3.9 | 1BZ-4.4 | 1BZ-5.3 | 1BZ-6.2 |
| Overall size | cm | 582*418*136 | 582*465*136 | 716*288*150 | 750*656*150 |
| Weight | kg | 2400-2450 | 2600-2650 | 3250-3300 | 3750-3800 |
| Working width | m | 3.9 | 4.4 | 5.3 | 6.2 |
| Working depth | cm | 20 |
| Disc space | mm | 230 |
| Qty. of disc | pc | 36 | 40 | 48 | 56 |
| Dia. Of disc | mm | 660 |
| Ground clearance | mm | >160 |
| Productivity | ha/h | 2.4 | 3 | 4 | 5 |
| Matched power | hp | 120-150 | 130-150 | 150-180 | 160-180 |
| FOB Price | unit | 4350USD | 5000USD | 6250USD | 7200USD |
| Linkage | | Trailed |
>>
