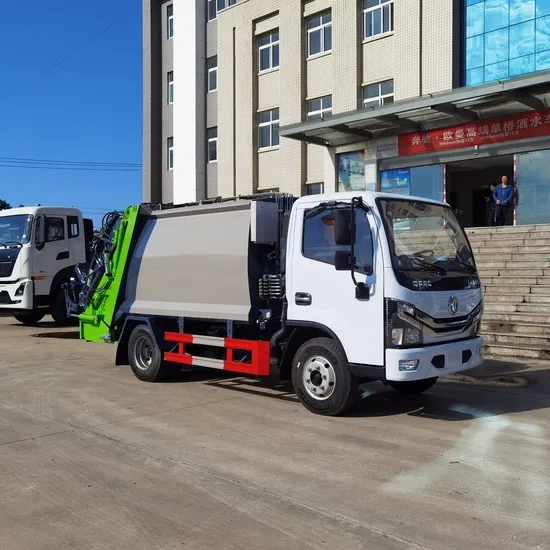

Compressed garbage truck is a vehicle specifically designed for compressing and transporting garbage, mainly used for urban sanitation operations, aiming to improve the efficiency of garbage treatment and reduce space occupation during transportation. Its design has three functions of garbage compression, storage, and transportation, which can load more garbage in the same volume, reducing transportation frequency and operating costs.
| ITEM | PARAMETER | UNIT | DATA |
| Whole Vehicle | Vehicle Model | | CLW5075ZYSD6 |
| Overall Dimensions | mm | 6763×2250×2660 |
| Curb Weight | kg | 5700approximate |
| Rated Load | 5200approximate |
| Volume | L | 7000pproximate |
| Front/Rear Hanging | mm | 1055/2052 |
| Approach/Departure Angle | ° | 28/12 |
| Leaf Spring | pcs | 6/6+5 |
| Drive Wheel | | 4*2 |
| Chassis Model | | EQ1075SJ3CDF |
| Manufacturer | | Dongfeng Motor Group Co., Ltd |
| Wheel Base | mm | 3308 |
| Tire Specification | inch | 7.00R16 14PR |
| No. of Tires | pcs | 6+1 spare |
| Engine | Engine Type | | CA4DB1-13E6 (Euro VI) |
| Manufacturer | | China FAW Group Co., Ltd |
| Engine Horsepower | hp | 130 |
| Displacement | ml | 2207 |
| Emission Standard | | Euro VI |
| Gearbox | No. of Gears | | Manual 6-speed with overdrive |
| Cab | passengers | | 2 |
| steering wheel | | LHD |
| ROW | | Single row |
| Other | Electric air conditioning, regular air filter, metal bumper, large capacity battery, Dongfeng logo |
| Equipment | Garbage bin volume:7000L |
| Hydraulic system control: manual control |
| Garbage loading method: rear hanging bucket flip frame (hanging 240-liter garbage bin). |
| Sewage tank capacity: 100L+100L |
| Material of garbage bin: manganese steel |
| Thickness of garbage bin:Bottom plate:5mm;side plate: 4mm; top plate: 4mm |
| Body exterior color: customizable according to customer requirements |
