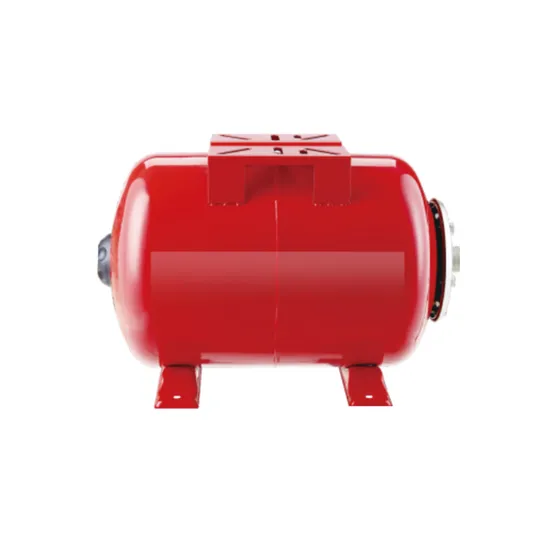

Horizontal Diaphragm Membrane Pressure Tanks Vessels for 24 Liter Capacity

Product Description

Horizontal Diaphragm Membrane Pressure Tanks Vessels for 24 Liter Capacity Product Description
Replaceable membrane pressure tanks carbon steel
Working temperature:
Butyl : -20ºC/ 99ºC
Epdm : -20ºC/ 99ºC
Natural Rubber : 0ºC/77ºC Product Parameters

Model	MAX.Pressure (bar)	Length (mm)	Height (mm)	Connector	Precharge pressure (bar)	Packing (cbm)
CF-19L	6/8/10/16	395	292	1"	1.5	0.03559
CF-24L	6/8/10/16	460	292	1"	1.5	0.03993
CF-36L	6/8/10	435	375	1"	1.5	0.05882
CF-5OL	6/8/10	545	375	1"	1.5	0.07524
CF-60L	6/8/10/16	645	408	1"	1.5	0.10819
CF-80L	6/8/10/16	600	470	1"	1.5	0.13248
CF-100L	6/8/10/16	685	470	1"	1.5	0.15235

Detailed Photos
Company Profile

ZHEJIANG FLORANK PUMP INDUSTRY Co., Ltd is a professional manufacturer and exporter of water pumps with over 15 years and specialized in manufacturing vortex pumps, centrifugal pumps, Jet pumps, sel-priming pumps, submersible pumps, screw pumps, sewage pumps, deep well pumps, oil pumps,. They are widely used for domestic appliance, agriculture irrigation, building construction, water boosting and transportation, waste water disposal etc.
With its sound and rapid growth, FLORANK Pump has obtained Certificate of ISO9001: 2000 quality management system, CE certificate and passed the SGS Inspection and BV inspection.
The pumps have been sold and greatly welcomed in the markets of south-east Asia, the Middle East, Africa, East Europe and South America because of its reliable quality and competitive prices.
Professional, Experienced, Trusted, Reliable are FLORANK's concept and philosophy. FAQ
Q1:Could I put my own logo on it ?
A:Sure,We accept OEM and ODM .
Q2: What is your sample policy ?
A: We can supply the sample ,but the customers have to pay the shipping cost .
Q3:Could I produce according to the samples?
A:Of course .we can produce by your samples or technical drawing,We can build the molds.
Q4:How long is production time ?
A: Based on the quantities ,sample order 7-15 days,mass order 30-60days .
Q5:What is the standard package ?
A: Carton or wooden box.
Q6:Do you test all your goods before delivery ?
A:Of course,we have 100% test before delivery .
