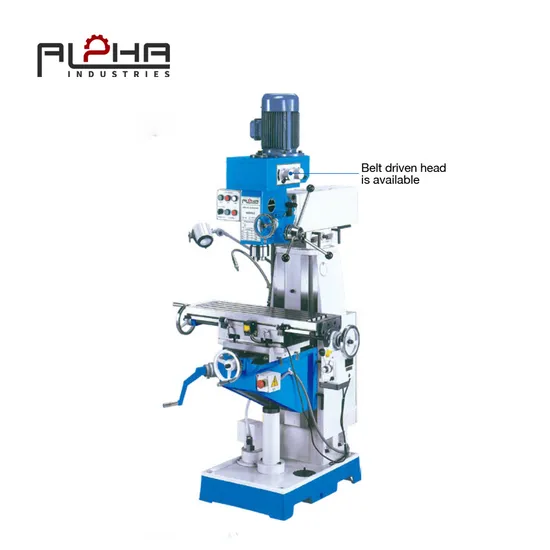

Made in China Vertical Drilling Milling Machine MD50 High Precision

Product Description

Product Parameters

Model NO.	MD50	Controlling Mode	Artificial
Automatic Grade	Manual	Precision	High Precision
Certification	CE, ISO 9001	Condition	New
Specification	1290×1140×2100mm	Trademark	Alpha industries
Origin	China	Production Capacity	100 Sets/Year

Technical Parameters
Model No.	Unit	MD50	MDH50	MDH60
max.drilling capacity	mm	50	50	50
max.end milling capacity	mm	25	25	25
max.face milling capacity	mm	100	100	100
work table size	mm	800×240/1000×240	800×240/1000×240	1120×260
T-slot size	mm	14	14	14
crosstravel	mm	230	230	230
longitudinal travel	mm	400	400	350
max.tapping milling dia		M16	M16	M16
spindle travel	mm	120	120	120
max.distance spindle to table	mm	70-420	70-420	90-400
taper ofspindle bore		ISO40	ISO40	ISO40
step of spindle speed		8	8	8
range of spindle speed(vertical)	rpm	110-1760	110-1760	110-1760
range of spindle speed(horizontal)	rpm	60-1350	58-1355	38-1310
headstock tilted left &right		90	90	90
motor(vertical)	kW	0.85/1.5	0.85/1.5	0.85/1.5
motor(horizontal)	kW	1.5	1.5	2.2
packing size	mm	1290×1140×2100	1320×1280×2200	1500×1280×2200
N.W	kg	770	970	1350

Standard Accessories
Drill chuck	Arbor	Draw bar
Coolant system	Toolbox & tools
Optional Accessories
Power feed	Coolant system	58pcs clamp kits
100 milling vise	100 drill vise	Keyless drill chuck
Halogen work lamp

Company Profile
Certifications
Exhibition
Packaging & Shipping
FAQ
FAQs
Q1: How is the warranty?
A1: Warranty time is 15 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: We have stock for popular models, we produce according to order.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 40 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services under Alpha brand.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
