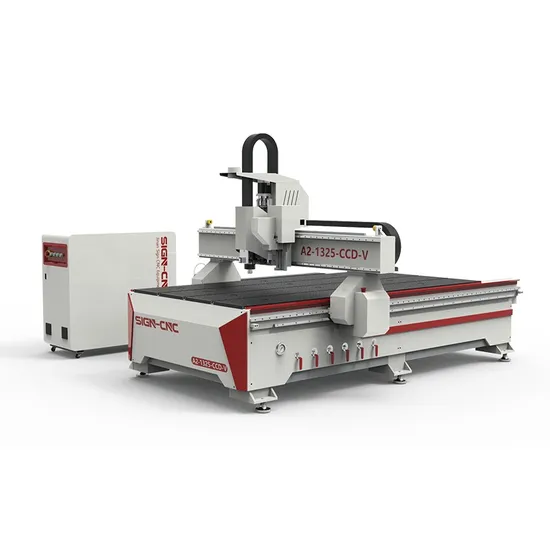

CCD Visual Orientation Wood Router 1325 Desktop CNC Router Machine

US$4,500.00-6,500.00 1 set (MOQ)

Basic Info.

Model NO.
A2-1325-CCD-V
Condition
New
Certification
CE
CNC or Not
CNC
Voltage
380V
Woorking Area
1300*2500*200mm
Spindle
6.0kw Spindle +Vibrating Knife
Guide Rails
25mm Square Guide Rails
Command Code
G Code
Control System
Xdw Control System with Computer
Reducer
Japan Shimpo Planetary Reducer
Z- Axis Height
200mm
Oil Lubrication System
Manual
Motor
AC Servo Motor and Driver
CCD
CCD Camera with Software
Transport Package
Standard Export Wooden Box
Specification
13 CBM
Trademark
SIGN CNC
Origin
China
HS Code
846599
Production Capacity
300 Set/Month

Product Description

Ccd Visual Orientation Wood Router 1325 Desktop Cnc Router Machine
Specification
Model
A2-1325-CCD-V
X, Y Working size
1300x2500mm
Z feed Height
150mm
Table Surface
Vacuum table
X, Y Structure
Rack and Pinion Drive, TBI Linear Square Guide Rail
Z Structure
25mm Linear Square Guide Rail and Ball Screw
Max. Power Consumption
(Without spindle) 2.0Kw
Max. Rapid Travel Rate
35000mm/min
Max. Working Speed
20000mm/min
Spindle Power
6.0KW spindle +vibrating knife
Spindle speed
0-18000RPM
Drive Motors
Servo motor and driver
Working Voltage:
AC220V/50/60Hz
Command Language
G code
Control System
XDW control system with computer
X,Y,Z repositioning Accuracy
±0.01mm
X,Y Resolution
<0.01mm
Software
Artcam
Running Temperature
0 degree - 45 degree
Reducer Japan Shimpo planetary reducer
CCD CCD camera with software
Relative Humidity
30% - 75%
Optional Parts
Rotary system,
Panasonic Servo motors

Company Profile
FAQ
1.I need a CNC Router, Can you give me some suggestions?
A: Of course . but to suggest you the most suitable machine, I need to know further informations such as effective processing area , materials etc.
2.If we do not know how to use the machine, can you teach us?
A:Yes,we will ,if you come to China,we will offer you free training until you can use the machine freely..
3.which kind of materials can be processed on this machine ?
A;Wood, MDF stone, acrylic, glass, plastic, foam, aluminum, copper, and almost all kinds of non-steel materials
