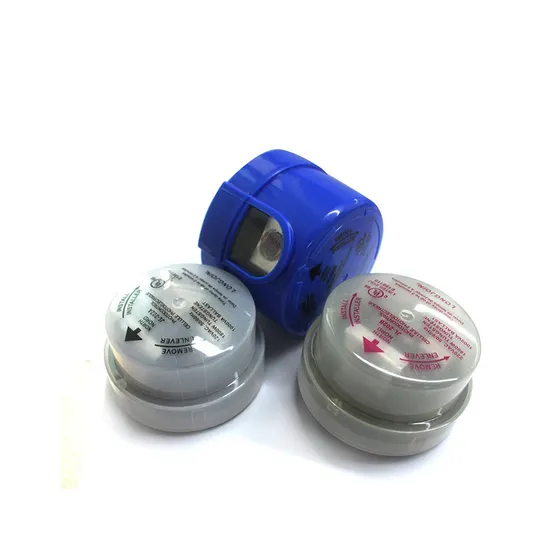

Outdoor Wall Bracket Mounted LED Street Light Photocell Sensor Switch

Product Description

Lealite photocontroller series are applicable to control the street lighting, garden lighting passage
lighting and doorway lighting automatically in accordance with the ambient natural lighting level.
They are designed with electronic circuits with sensor of phototransistor and a surge arrester (MOV).
Its quicker response with time delay of 10-30 seconds offers easy-to-test feature. Especially
model JL-205C provides a wide voltage range for customer applications under almost power supplies.
Further preset 5-30 seconds time-delay can avoid mis-operation due to spotlight or lightning during the night
time. Twist lock terminals meet the requirements of ANSI C136.1O-1996 and Standard for Plug-In Locking
Type Photocontrols for Use with Area Lighting UL7734
Easy-to-maintain Twist-lock (ANSI C136.10)
- IP65 protection while installed
- Easy-to-test Instant switching-over
- Multi-volts available
- Surge Arrester built-in
- UL & C-UL listed.
- SPST-NO
- Electromagnetic AC relay switching
- UV stabilized Polycarbonate cover & clear window
- High impact Polybutylene terephthalate Base
- 1" CdS photocell for standard; 1/2" CdS photocell with heat sink available
- 110J/3500A MOV for standard; 235J & 460J MOV available
On-Off Levels: 6Lx On(Dusk); 50Lx Off(Dawn);
While 220V: 3Lx On, 30Lx Off(JL-201C)
Ambient Temp.: -40ºC ~ +70ºC
Related Humidity: 96%
Power consumption: 1.5VA Max.
Electrical Life: 5000 cycles

Model	JL-205A	JL-205B	JL-205C	JL-205-12D	JL-205-24D	JL-207-48D
Rated Voltage	110-120 VAC	220-240 VAC	110-277 VAC	12 VDC	24 VDC	48DC
Applicable voltage range	100-140 VAC	200-260 VAC	105-305VAC	-	-	-
Rated Frequency	50/60Hz
Overall Dimensions(mm)	84(Dia)*66
Rated Loading	1000W Tungsten, 1800W Ballast			75W Tungsten 75VA Ballast 2A e-Ballast	150WTungsten 150VA Ballast 2A e-Ballast	150W Tungsten 150W Ballast 2A E-Ballast
Power Consumption	1.5VA[STD]/3VA[HP]
On-Off Level	10-20Lx On 30-60Lx Off					10-20Lx On 20-40Lx Off
Time-delay	3-20s
IP Rating	Optional IP54,IP65,IP67
Housing Color	according to your requirement to design product style.
Housing Feature	Optional Customized heat dissipation double cover
Certificate	CE,RoHS,UL,RoHS other validate certificate

---
