US$900.00-1,500.00
|
1 Piece
(MOQ)
|
Basic Info.
Certification
ISO 9001:2008, Ce, SGS
Transport Package
Plastic Film
Specification
GB/T3298-96
Origin
Heshan City, Guangdong, China
Production Capacity
500PCS/Year

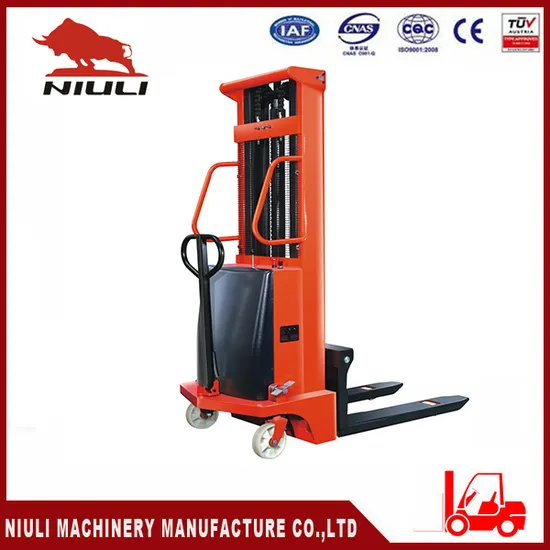

Product Description
1. Capacity: 1000kg/1500kg. 2000kg. 2500KG
2. Lift Height: 1600mm, 2000mm, 2500mm, 3000mm, 3300mm. 3500MM-4500MM
3. Fork Length: 1000mm.
4. Min Height Of Forks Lowered: 80-100mm.
5. Charging Voltage: AC220V. 12V DC power
6. Adjustable Width Of The Forks: 320-720mm
| Model | CTD1.0/16 | CTD1.0/20 | CTD1.0/25 | CTD1.5/25 | CTD1.5/30/33 | CTD2.0/16 |
| Capacity(kg) | 1000 | 1000 | 1000 | 1500 | 1500 | 2000 |
| Max.lifting height(mm) | 1600 | 2000 | 2500 | 2500 | 3000/3300 | 1600 |
| Fork length(mm) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Min.fork height(mm) | 90 | 90 | 90 | 90 | 90 | 90 |
| Load eenter(mm) | 500 | 500 | 500 | 500 | 500 | 500 |
| Voltage | AC220V | AC220V | AC220V | AC220V | AC220V | AC220V |
| Motor power | 1.6KW | 1.6KW | 1.6KW | 1.6KW | 1.6KW | 1.6KW |
| Outer width of front legs(mm) | 635 | 635 | 635 | 635 | 635 | 635 |
| Inner width of legs(mm) | 395 | 395 | 395 | 395 | 395 | 395 |
| Adjustable Width of fork(mm) | 360-690 | 360-690 | 360-690 | 360-690 | 360-690 | 360-690 |
| Rear wheel size(mm) | φ180X50 | φ180x50 | φ180x50 | φ180x50 | φ180x50 | φ180x50 |
| Front wheel size(mm) | φ80X70 | φ80x70 | φ80x70 | φ80x93 | φ80x93 | φ80x93 |
| Self Weight(kg) | 312 | 325 | 340 | 425 | 445/465 | 397 |
| Extended height(mm) | 2080 | 1580 | 1830 | 1830 | 2080/2230 | 2080 |
| Closed height H3(mm) | 2080 | 2500 | 3000 | 3000 | 3500/3800 | 2080 |
>>
