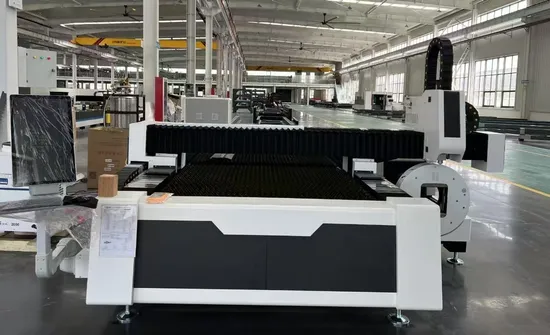

Fiber Laser Metal Tube and Sheet Cutting Machine

Product Description

Fiber Laser Metal Tube and Plate Cutting Machine
Fiber laser cutting machine DLM-3015 is the best cutting tool for thin sheet metal cutting, especially for stainless steel cutting. DLM-2513G Fiber laser cutting machine has the feature of compact layout, stable optical link, convenient operation and reliable performance.
In addition ,the laser metal cutting machine also has the following features:
1.Integrated machine design, left and right collecting drawer design highly saving space.
2. Stability and reliability for light path system and control system.
3. Fiber laser has high and stable function and lifespan which is over 100000 hours.
4. Higher cutting quality and efficiency with cutting speed being up to 25m/min with perfect cutting edge.
5. High performance reducer, gear and rack; Japanese guide and ball screw.
Specification

Model	DLM-3015
Working Area	1500mm*300mm
Fiber Laser Power	1500W/2000W/ 3000W/6000W
X axis stroke	2500mm
Y axis stroke	1300mm
Z axis stroke	100mm
X/Y position accuracy	±0.05mm/m
X/Y Reposition Accuracy	±0.03mm
X/Y axis Max Acceleration	1G
Max Velocity of Movement	80m/min
Machine Weight	3000KG
Machine Dimensions(L*W*H)	3500mm*2100mm*1800mm

Products:

Fiber laser cutting machine has been widely used in sheet metal cutting, electrical switch manufacturing, aerospace, food machinery, textile machinery, engineering machinery, locomotive manufacturing, agriculture and forestry machinery, elevator manufacture, special vehicles, household appliances, tools, processing, IT manufacturing, oil machinery, food machinery, diamond tools, welding, welding gear, metal materials, decoration advertising, laser surface treatment of foreign processing services, such as all kinds of machinery processing industry.

---
