Product Description
Product Description

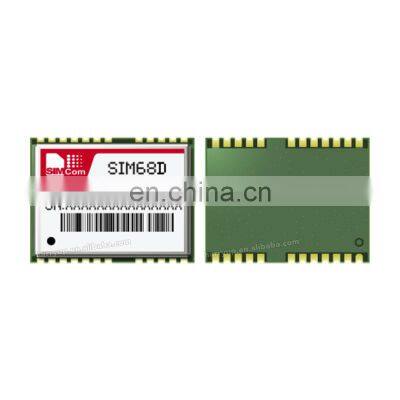

DescriptionSIM68DSIM68D is a high performance and reliable GNSS module. It is a standalone L1 +L5 dual-band GNSS module in a LCC type with AIROHA’s high sensitivity navigation engine, which allows customer to achieve industry’s high level sensitivity, accuracy, and Time-to-First-Fix (TTFF) with lower power consumption.SIM68D provides simultaneous GPS, GLONASS, BeiDou , Galileo and QZSS open service L1 reception capability and GPS, BeiDou, Galileo and QZSS open service L5 reception capability. SIM68D can acquire and track any mix of multiple satellite signals. Combining advanced AGPS called EASY™ (Embedded Assist System) with proven AlwaysLocate™ technology, SIM68D achieves the highest performance and fully meets the industrial standard.Product Advantages• L1 and L5 dual-band GNSS receiver• Support EASYTM self-generated orbit prediction• Support EPOTM orbit prediction• Support SBAS ranging (WAAS, EGNOS, GAGAN, MSAS)• Suport Jamming Removing• Low-noise amplifier has been integratedPerformance dataFeatures• Receiver type : L1: 75SVsL5: 60SVs• Max. update rate : 10Hz• Sensitivity1Tracking : -166dBmReacquisition : -160dBmCold starts : -148dBm• Time-To-First Fix²Cold starts : 27sWarm start : 25sHot starts : <1sEPO Assist : 13s• AccuracyAutomatic Position³ : 1.5MSpeed⁴ : TBD• Operation temperature: -40℃~+85 ℃• Support L1: BeiDou/GPS/GLONASS/Galileo/QZSSL5: BeiDou/GPS/Galileo/QZSS• Support EASY™ self-generated orbit prediction• Support EPO™ orbit prediction• Support SBAS ranging(WAAS, EGNOS, GAGAN, MSAS)• Support Jamming Removing• Low-noise amplifier has been integrated• Support DGPS (RTCM)• Indoor and outdoor multi-path detection and compensation• LOCUSTM logger function1. Demonstrated in lab2. All SV @ –130 dBm3. 50% 24 hr static, -130dBm4. 50%@ 30m/s5. When at -40°C~ -30°C, the sensitivity will be somewhat worse 6. @3.3V with a passive antennaInterfacesMechanical data• Serial interfacesUARTSPII2C• Digital I/OPulse-per-second (PPS)EINT0 input• ProtocolsNEMAPMTK•Dimensions : 16*12.2*2.4mm•Weight : 1gElectrical dataCertifications• Power supply : 2.8V~4.3V• Backup power : 2.3V~4.6V• Power consumption :Acquisition : 23.3mATracking : 23.9mASleep current: 340uABackup : 78uA• Antenna type : Active and passive• Antenna power : External or internal VCC_RF• TBDWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Cable / ConnectorSIMCard HolderSensorIC
>>
