Basic Info.
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Hydraulic Pressure
Automatic Grade
Automatic
Certification
CE, ISO 9001
Max.Spindle Speed
4500rpm
Spindle Motor Power
4.0/5.5kw
Machine Dimension
2200*1500*1700
Transport Package
Exporting Wooden Box
Production Capacity
1000PCS/Year

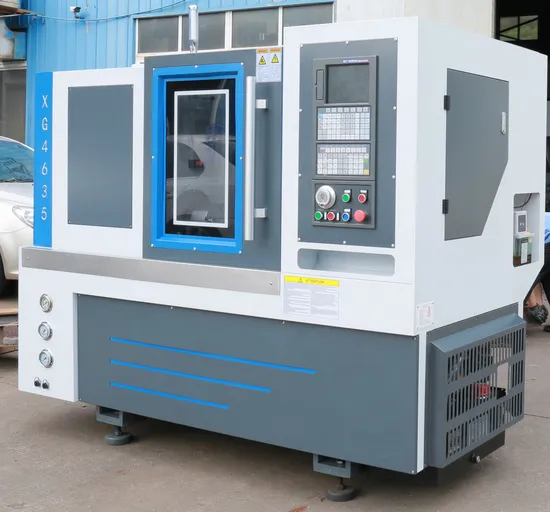

Product Description
Main Feature:
1.Robust and compact bed with 30 degree
2.with hydraulic tail stock for slim products as standard.
3.Adopt Taiwan HIWIN linear rail, Japanese THK ball screw to keep accuracy.
4.Both hydraulic collet and Hydraulic chuck are available.
5.8 station servo turret for quick tool changing with best stability.
6.All kinds of CNC system, GSK980TDi, GSK988TA,SYNTEC, Fanuc 0i-TF, Siemens 808D, 828D as optional.
7.Mainly for all kinds of medium spare parts, widely use in sanitary, valve, electrical, appliance, instrument, automobile, motorcycle industry.
Specification:
| Item | Technical parameter | Unit | Parameter |
| Processing capacity | Maximum turning diameter of bed | mm | ф400 |
| Chucking holds the longest workpiece | mm | 350 |
| Maximum bar through hole diameter | mm | ф46 |
| Maximum machining diameter of disk class | mm | ф300 |
| X axis maximum travel | mm | 200 |
| Z axis maximum travel | mm | 380 |
| Spindle | Maximum spindle speed | rpm | 4500 |
| Main shaft hole diameter | mm | ф56 |
| Spindle nose form | ASA | A2-5 |
| Three jaw chuck | Inch | Standard configuration 6 inch |
| Rotary cylinder Specifications (optional) | Inch | TH646 |
| Main motor power | kw | Standard 4, optional 5.5 |
| Feed rate | X. Z axis fast shift speed | m/min | 25/25 |
| Precision | X axis repeated positioning accuracy | mm | 0.003 |
| Z axis repeated positioning accuracy | mm | 0.005 |
| roundness | mm | 0.005 |
| roughness | RA | 0.4-0.8 |
| Diameter consistency | mm | 0.015/300 |
| Flatness (concave only) | mm | 0.015/300 |
| Turret | Turning rod specifications | mm | 20*20 |
| Turning handle specifications | mm | ф20/ф25 |
| Tailstock | Taper of inner hole of tail seat shaft | mm | MT4 |
| Outside diameter of tailstock shaft | mm | ф62 |
| Hydraulic shaft travel | mm | 90 |
| Amount of movement of tailstock | mm | 220 |
| Chuck face to center | mm | 350 |
| Movement pattern of tailstock | | Manual operation |
| Others | Bed layout form | / | 30 degree tilt bed |
| Machine weight | kg | 2200 |
| Overall dimensions (length, width and height) | mm | 2200*1500*1700 |
>>
