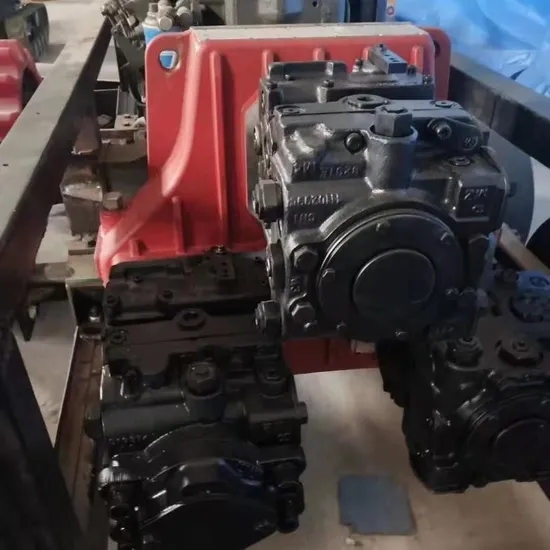

Engine Power Split Shaft Pto, Transfer Case, Hydraulic Pump Drive Gearbox for The Hydraulic Pumps Connection to Prime Engine.

Product Description

The Pump Drives (Hydraulic pump Drives) is a gearbox allowing the connection between a prime mover (internal combustion engine or electric motor for example) and one or more hydraulic pumps. Usually it is used on both stationary and mobile application where mechanical power must be converted into hydraulic power for the purpose of operating travel functions and services.
The hydraulic pumps drives gearboxes consist of a gear drive inside a bell housing that connects to a gasoline or diesel engine. The opposite side contains one or more standard 2- or 4-bolt flanges for mounting hydraulic pumps. This configuration provides several benefits. For one, two or more identical pumps can be connected to provide nearly identical hydraulic output flow from each. Or different sized pumps can be used provide output flow proportional to the displacement of each pump.These gearboxes not only saves space and weight but also eliminates the number of components and reduces assembly time for the whole machinery. Our modular pump drives could allow driving two to four pumps simultaneously. This not only offers design flexibility, but can boost system efficiency as well.

Model	2 pumps drive				3 pumps drive				4 pumps drive
Parameter	KK190-2N	KK400-2N	KK530-2N	KK700-2N	KK280-3N	KK400-3N	KK530-3N	KK700-3N	KK530-4N	KK700-4N
Max. Input power (KW)	190	400	530	700	280	400	530	700	530	700
Max. Output power per pump pad (KW)	110	210	270	360	150	210	270	360	270	330
Max. Output torque per pump pad (Nm)	400	900	1500	1900	800	900	1500	1900	1500	1800
Max. Input speed (RPM)	2800	2600	2600	2400	2800	2600	2600	2400	2600	2400
Max. Output speed (RPM)	3200	2800	2800	2700	3200	2800	2800	2700	2800	2700
Transmission ratio	0.74/0.81/0.89/0.98···	0.67/0.74/0.81/0.89/0.98···	0.67/0.74/0.81/0.89/0.98···	0.67/0.74/0.81/0.89/0.98···	0.74/0.81/0.89/0.98···	0.67/0.74/0.81/0.89/0.98···	0.67/0.74/0.81/0.89/0.98···	0.67/0.74/0.81/0.89/0.98···	0.67/0.74/0.81/0.89/0.98···	0.67/0.74/0.81/0.89/0.98···
Mount size of Prime mover	SAE #3 #4 etc.	SAE #2 #3 etc.	SAE #1 #2 #3 etc.	SAE #0 #1 #2 etc.	SAE #3 #4 etc.	SAE #2 #3 etc.	SAE #1 #2 #3 etc.	SAE #0 #1 #2 etc.	SAE #1 #2 #3 etc.	SAE #1 #2 etc.
Port size of Single pump	SAE A,B,C flange etc.	SAE A,B,C,D flange etc.	SAE B,C,D,E flange etc.	SAE C,D,E flange etc.	SAE A,B,C flange etc.	SAE A,B,C,D flange etc.	SAE B,C,D,E flange etc.	SAE C,D,E flange etc.	SAE B,C,D,E flange etc.	SAE B C,D flange etc.
Housing material	Cast iron	Cast iron	Cast iron	Cast iron	Cast iron	Cast iron	Cast iron	Cast iron	Cast iron	Cast iron

---
