Basic Info.
Cutter Material
Hard Alloy
Usage
Grind Waste Cable and Separate The Copper From Pl
Dimension
1000*1000*1850mm
Capacity
20 to 50kg Per Hour
Power Supply
Single Phase or 3 Phase
Finished Surface
Outer Surface Process
Compressive Strength (For Crushing)
100-250MPA
After-sales Service
Provide
Principle
Vibration Sieve
Transport Package
PE Film or Wooden Box
Product Description

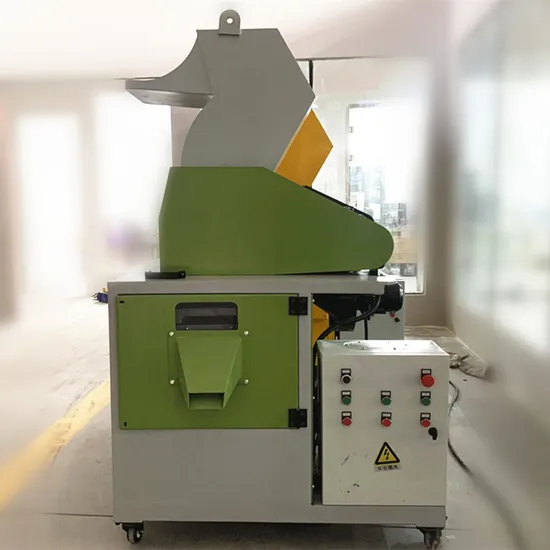

Product DescriptionMini size small capacity 20kg to 50kg per hour cable granulator and separator for copper and plastic insulation
Product Parameters
| Model | OTD50 |
| Capacity | 20 to 50kg per hour |
| Cable range | diameter <15mm |
| Granulator power | 3kW |
| Power supply | Both single phase and 3 phase are workable |
| Machine dimension | 1000mm*1000mm*1850mm |
| Weight | 600kg |
| Transport | 4 Wheels |
| Package | PE film and wooden box |
| Delivery | 30days |
Detailed Photos1. Grind waste cable and separate the copper from plastic.
2. Copper purity: 99%
3. Plastic purity: 99%
4. Power supply: 1 phase or 3 phase
5. Small size
6. One operator Certifications
Excellent FeedbackAs a 15+ years experience manufacturer and exporter of recycling machines, we are proud of the excellent feedback from our customers.
After Sales Service· Key Service: one stop service, turnkey service
· Quick response: 0 email over night
· Installation and debugging: 1 or 2 engineers will be sent to customer site
· Online support: <12hr
· Video support: <12hr
· Warranty: 12months
· After-sale: life-long maintaing and technical support
Our AdvantagesCategories:
·Shredder Granulator/Crusher
·Cable recycling plant
·Wire stripping equipment
·Solid waste treatment
·Tire recycling plant
·Radiator recycling plant
·Hammer mills
·Baler Briquetting press
·Blade Sieve
·Spare part
·Turnkey solutions
FAQQ1: How do I know the quality of your machine?
A: You can send your sample scrap materials to us and we will test the machine for you without charging the fees. And we can send the machine test video to you. We also warmly welcome you to visit our factory to test our machine personally.
Q2:Which country have you exported to?
A: Russia,France,New Zealand,Thailand,India,Mexico,Chile,Algeria,etc.
Q3: What would be the biggest size cable for this machine to process?
A: Cable range: rigid <15mm,flexible <15mm
Q4:. Does it have different size screens for the sizing of the copper?
A: Each set of OTD50 have 2 different screens.
Q5: Can you send me machine videos?
A: Sure, please leave us message or wirte us email, the machine vidoes and more images will be sent to you immediately.
>>
