Pneumatic Hand-Held Chisel Bits & Integral Drill Rods Grinding Machine

Product Description

1 suitable for chisel bits and integral drill rods sharpening
2 hand-held/semi-automatic (pneumatic power)
3 speed sharpen 4900, 5300, 20000 r.p.m
4 CE
5. For various sizes
BESTLINK------------Sole Manufacturer of CG100P Pneumatic Integral Drill Rod Grinding Machine in China Products Features:

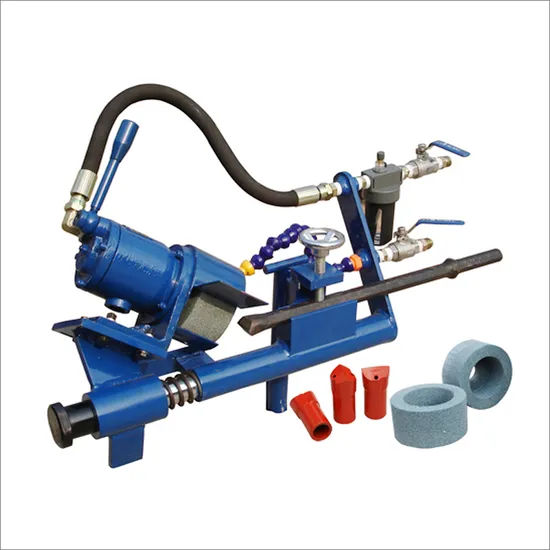

CG100P pneumatic machine is designed for grinding the chisel bits and integral drill rods.
Your worn bit or rod can be reused after being grinded by our grinding machine, to prolong their service life and safe more cost.
It's hand-held using, very convenient, CE certificate.

We have two kinds of attached grinding wheels : ceramic and diamond.
BESTLINK-------------Sole Manufacturer of Button Bit Grinding System in China
Products Features:
A: Button Bits Grinder
BTON 200 is a high powered hand-held button bits grinder. It have quickly established themselves as dependable and versatile machines, credited by the professionals and CE approved.

B: Diamond Grinding Cups
BESTLINK supplies you various kinds of grinding cup for your various need.
Details as below:
1. Wing (shoulder) drive grinding cup for, with a 8mm diameter shaft(shank) and one O-ring. Suitable for integral brand grinding machine;
2. 9mm diameter shaft(shank), suitable for all grinding machines;
3. 55 drive grinding cup is for all Atlas grinding machines.
The grinding cups sizes are ranged from 6mm to 25mm; a special size is on clients request.

Online Videos:
1. Pneumatic Button Bit Grinder BTON200
http://xmbestlink.en.made-in-china.com
http://xmbestlink.en.made-in-china.com
2. Semi-Automatic Button Bit Grinder BTON500
http://youtu.be/I2A4w9NVSKg
http://youtu.be/NJYz4P3sISo
3. Pneumatic Integral Drill Rod Sharpener CG100P
http://xmbestlink.en.made-in-china.com

Technical Data's:
1. CG100P Pneumatic Integral Drill Rod/Chisel Bit Sharpener:

Technical characteristics	CG100P		BL150Z66A
	Class A	Class B	Hand held straight grinder
Idling speed(max.)	4900r.p.m.	5300r.p.m.	6600r.p.m.
Motor Power	2HP	1HP	1.6HP
Sharpening angle	110°	110°	any
Sharpening radius	125mm	125mm	any
Working air pressure	5-7 bar (72-100 psi)
Air consumption at 6 bar	1.9m3/min	1.35m3/min	1.6m3/min
Abrasive grinding wheel	125*63*32mm	125*63*32mm	150*32*32mm
Grinder hole (diameter)	32mm	32mm	32mm
Grinder height	70cm	70cm	TL=475mm
Grinder thickness	22cm	22cm
Air hose diameter	19mm		16mm
Portable version weight	27kg	27kg	7kg

2. Grinding Wheels for CG100P:

Size	Weight(kg)
Grinding cup,125*63*32mm	1
Grinding wheel,200*25*31.75mm	2.5
Grinding wheel,150*32*32mm	1.1

3. BTON200 Hand held Button Bit Grinding Machine:

Model of Hand held Button Bit Grinder	BTON200
Max Air pressure	5-7 bar (100psi)
Air consumption	2m 3 /min (50ft 3 /min)
Rate power	1.5kw
Idling speed	20,000 rpm
Water flushing presuure, max	4 bar (60psi)
Hose diameter, air	19 mm(1/2″)
Hose diameter, water	4mm
Weight, exclude hoses	3.2 kg
Sound level	80 dB
Grinding button size	Φ6-25 mm

4. BTON500 Semi-automatic Button Bit Grinding Machine:

Model of Semi-automatic Button Bit Grinder	BTON500/BTON500E
Rotation speed	20000 rpm
Motor: Pneumatic (air powered) Power output	1.5 KW
Work pressure	5-7 bar (100 psi)
Max. air pressure	8 bar (115 psi)
Air consumption	2.2 m3 / min (80ft3/min)
Max. water pressure	4 bar (60 psi)
Air hose diameter	19 mm
Water hose diameter	4 mm
Weight excl. packaging	120 Kg
Weight incl. packaging	130 Kg
Sound level	92 dB(A)
Packing Dimensions	1370*620*610MM

5. Button Bit Grinding Cups/ Pins:

Grinding Cups Model	WING DRIVE/ 55 DRIVE/ HEX DRIVE
For button size	6/7/8/9/10/11/12/13/14/15/16/17/18/19/20/21/22/23/24/25 mm
For button shape	Semi-ballistic/Hemi-spherical

STANDARD AIR / WATER WAYS ON GRINDING CUPS 1). Single-water way is suitable for all insert shapes and all types of grinding machines.
2). The 3-water ways are standard on all grinding cups larger than 14mm. Gives a better redressing result, longer life of the grinding cup.

---
