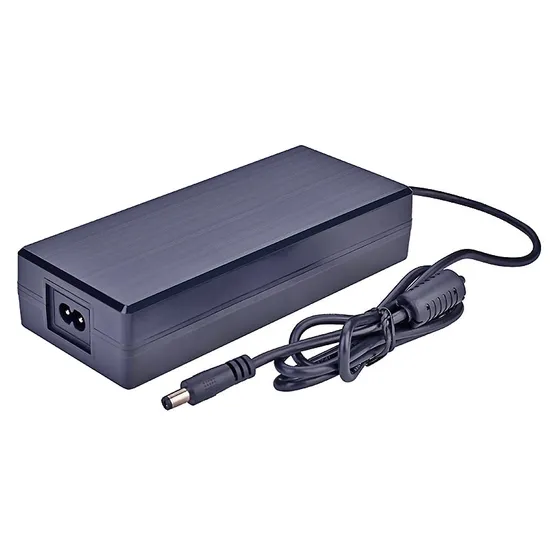

120W Battery Charger 21.6V/21.9V 5A Smart Charger for 6s 18V 19.2V 5A LiFePO4 LiFePO 4 Battery Pack Bmsi CCC CE ETL FCC GS Rcm SAA UL

Product Description

Quick Detail: Brand Name:QUAWIN
Model Number:QW192-050-F
Use:6S 18V/19.2V Lifepo4 battery pack
Type:Electric
Place of Origin:Guangdong China (Mainland)
Battery charger:automatic battery charger 21.9V
Color:Black
Shell Material:Plastic Shell(ABS+PC)
Input voltage:90-264VAC 47/63Hz
Output voltage:21.9V
Output current:5a(Max)
Output power:109.5W
Charge mode:CC-CV(Constant Current-Constant Voltage)
Output Connector:Waterproof plug, Crocodile Clip, Aviation Connector, XLR, Ring terminal, Aviation Model plug, SAE Plug, Anderson Connector, Customized
Certification:BMSI CB CCC CE ETL FCC GS KC PSE RCM SAA UL
Packaging & Delivery : Inner package:Corrugated box,EPE pearl cotton/according to your requirements
Outer packing: export carton
Delivery Detail:sample within 7 work days,25-35 days for bulk order
Specifications:
6S 18V/19.2V Lifepo4 battery pack
Features:
• Fully auto CC +CV(H)+CV(L) charging process;
• Constant big charging current for faster charging;
• Automatically charging ending with Cut-Off output;
• Fully enclosed fanless design, quiet and durable.
• Efficiency(at 100% load):>=85%
• Operating temperature:-20ºC ~ 45ºC
• Storage temperature:-40ºC ~ 85ºC
• Operating humidity:5%~90%RH
Specification:
• Input: 90-264VAC 47/63Hz
• Output: DC 21.9V
• Charging current: 5a(Max)
• Dimensions (mm): 172.7*72.7*36
• Weight: 600±10g(only body)
Safety protections:
• Over current protection
• Over voltage protection
• Short circuit protection
• Anti- revert current protection
LED Indicator:
The charger turn trickle-off charging mode if battery is full (1/10C), and indicate by LED:
• Charging:Red LED
• Battery Full:Green LED
• Error: RED Light Flashing Call us to know more details datasheet.

Typical Product Model
Model		Input Voltage (V)	Battery Voltage (V)	Charging Voltage (V)	Charging Current (A)
QW128-070-F	LiFePO4	AC 100~264V	12.8(4S)	14.6	7
QW256-040-F			25.6(8S)	29.2	4
QW384-025-F			38.4(12S)	43.8	2.5
QW512-020-F			51.2(16S)	58.4	2
QW640-015-F			64(20S)	73	1.5
QW768-014-F			76.8(24S)	87.6	1.4
QW148-070-L	Lithium		14.8(4S)	16.8	7
QW259-040-L			25.9(7S)	29.4	4
QW370-025-L			37(10S)	42	2.5
QW481-020-L			48.1(13S)	54.6	2
QW629-015-L			62.9(17S)	71.4	1.5
QW740-014-L			74(20S)	84	1.4
QW120-070-S	Lead Acid		12(1S)	14.7	7
QW240-040-S			24(2S)	29.4	4
QW360-025-S			36(3S)	44.1	2.5
QW480-020-S			48(4S)	58.8	2
QW600-015-S			60(5S)	73.5	1.5
QW720-014-S			72(6S)	88.2	1.4

---
