| US$19,000.00 | 1 Unit (MOQ) |

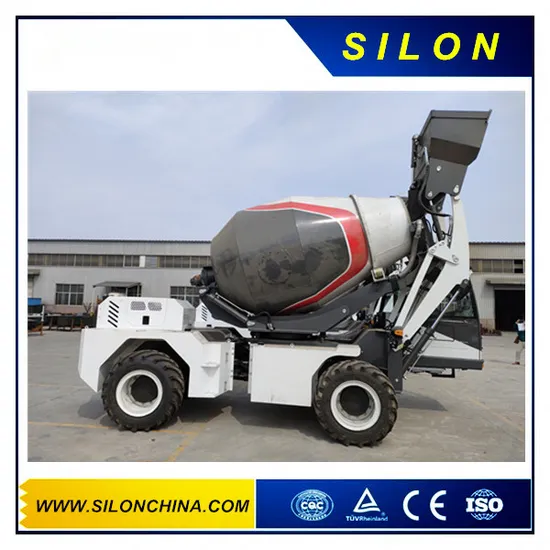

| 2.0m3 (rotating) Concrete Mixer Truck | ||
Diesel engine | Engine Model:Yuchai engine(78kw) options | |
| 3850ml--4 cylinder inline | ||
| Injection | Direct injection ,mechanical control | |
| Cooling system | Water--cooling,Dry air filter | |
| Max power | 78kw | |
| Max torque | 330nm@2400 r\ minute | |
| Electrical system | Alternator | 28V--1500Wa (53.5A) |
| Battery | 2*12V--60AH (272A) | |
| Road Lighting System | ||
| Steering System: | 2 wheel steering, the steering is assisted by a double displacement load-sensing power steering system on 2 steering wheels | |
4*4 Four-wheel drive | Hydraulic torque converter,open hydraulic gear pump,reverse gear control device.Control "working speed"and "moving speed" | |
| Speed: | ||
| 3 forward gears | 2 reverse gears | |
| The first gear: 0--7km\hour | 0--7km\hour | |
| The second gear: 7--20km\hour | 7--20km\hour | |
| The third gear: 20-25km\hour | ||
Axle | Front axle, steering , Wheel side deceleration Axle, the axle is equipped with a planet reduction gear | |
| Rear axle ,Swing ( ± 28° ) , the axle is equipped with a planet reduction gear | ||
| Tires | Tyre:20.5-16 thick semi-solid, max load:AD2925kg,350kPa, RIM:W13 | |
Brake | The internal hub-type travel brakes and emergency brakes act on 4 wheels,using a small servo pump on the dual loop.Negative pressure type parking brake, the front axle is equipped with an internal hub. | |
| Water Supply System | "Self-priming" 24v large capacity pump,with fast absorption function. | |
| Max flow: | 90L\minute | |
| Two water tanks connected with each other and opposite layout, Total capacity | 2*260L | |
| The water intake of the cylinder is controlled by the electromagnetic flow meter and the water intake reading on the display screen of the operating water. | ||
| Sit on the side of the driver's seat to enable the pump | ||
| Equipped with high pressure pump to flush vehicle | ||
Mixing And Unloading | Double cone cylinder with double spiral stirring screw and middle convex bottom | |
| Drum geometric capacity: | 2810L | |
| Drum rotation speed: | 15r\minute | |
| Concrete Production: | 2.0cbm\tank | |
| The counterforce rack mounted on the ball saddle can be hydraulically rotated at 270 o and automatically locked by a hydraulic brake | ||
| The rotation of the roller is achieved by the cycloidal hydraulic motor of the open circuit of the gear pump. | ||
| The roller is raised to a horizontal position by 2 double acting jacks | ||
| Removable chute can be guaranteed to be unloaded directly through the hopper. It can rotate at 270 o , but can not be synchronized with the tilting operation of the mixing drum Removable chute can be guaranteed to be unloaded directly through the hopper. | ||
| As a standard configuration , 2 chute extensions are provided. | ||
Equipment Hydraulic System | Gear Pump: | PERMCO Brand |
| Maximum Flow: | 63\50L\minute | |
| Maximum Pressure: | 16MPa | |
| 3 handle multi-function joystick Aluminum heat exchanger for cooling hydraulic oil Open oil inlet,hydraulic oil filter can be replaced from outside The loading arm is equipped with an automatic weighing sensor, a double acting loader lifting and resetting the cylinder, manual control of the feed port has a standard prompt function | ||
| Load | ||
| Capacity: | 400L | |
| Be filled with 4 times | ||
| Operating Room | Closed operating room with heating\cooling system inclined front window. Humanized seat with flexible suspension and height adjustment function | |
| Maintenance filler | Fuel tank: | 160L |
| Total capacity of hydraulic system: | 160L | |
| Machine oil: | 13.6L | |
Weight | Operating weight: | 6080kg |
| Maximum total weight: | 11080kg | |
| Maximum load weight: | 5000kg | |
| Overall dimension | 6840*2450*2800mm | |
