Automatic Purifier Cleaning System Complete RO Water Filter Production Machine Equipment Bottle Mineral Pure Drink Water Reverse Osmosis Water Treatment Plant

Product Description

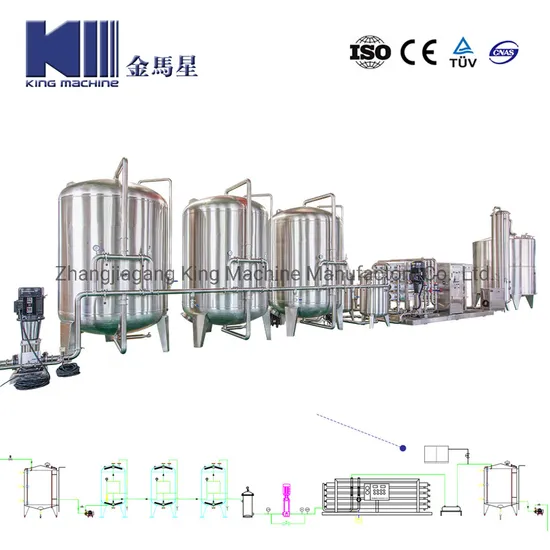

Complete RO Water Purifier Production Plant
*pure water treatment Processing:
Raw water pump → Silica sand filter → Activated carbon filter→ Sodium ion exchanger → Security filter → High-pressure pump → Reverse osmosis system →Uv sterilizer→Ozone sterilizer →Finished Water tank
*
According to the customer requirements and the source water quality, we adopt different equipment to produce pure water, mineral water, etc. The main equipments are silica sand filter, active carbon filter, sodium ion exchanger, hollow fiber, RO( reverse osmosis), UV sterilizer, precision filter, ozone generator, water tank, etc. The treatment capacity is 0.5-50 ton/hour. It can effectively get rid of muddy organic matter, iron, manganese and oxide, filter suspended substance, colloid, remained oxygen of microorganism and some of heavy metal ion in the water, reduce the hardness of the water to make all specifications of the water quality fully meet the state fresh water standard of fresh drink water.
*

pure water treatment system
Model	Outcome capacity(Ton/h )	Motor power(kw)	Membrane	EntranceDiameter (mm)	Size(L*W*H)( mm)	Weight(Kg)
KM-1000L/H	1ton	1.5kw	4040	Φ32	1980*900*1940	500
KM-2000L/H	2ton	3kw	4040	Φ38	4800*700*2050	700
KM-3000L/H	3ton	4kw	8040	Φ48	6000*800*2200	800
KM-4000L/H	4ton	5kw	8040	Φ48	7000*900*2400	1000
KM-5000L/H	5ton	7kw	8040	Φ60	8000*1000*2700	1500
KM-10000L/H	10ton	11kw	8040	Φ60	12000*1700*3500	4500
KM-15000L/H	15ton	16kw	8040	Φ72	12500*1700*3500	6500
KM-20000L/H	20ton	30kw	8040	Φ80	13000*1900*3500	9000
KM-30000L/H	30ton	35kw	8040	Φ98	13500*2300*3800	12000

First stage pretreatment.(Sand filter)
The use of multi-medium quartz sand filters, main purpose is to remove the water contains sediment, manganese, rust, colloid material, mechanical impurities, suspended solids and other particles in the above 20UM of substances hazardous to health.
Second stage pretreatment (Carbon filter)
Activated carbon filters used to remove the pigment in the water, smell, a large number of chemical and biological organisms, reducing the residual value of water and pesticide pollution and other harmful pollutants.
Third stage pretreatment (Resin softener)
Cationic resin used for water softening, primarily to remove hardness of water. So as to effectively prevent the reverse osmosis membrane fouling. System can automatically recoil, and so is red.
Fourth stage pretreatment (Micron filter)
Particle size in water to remove fine particles, sand filters can remove very small colloidal particles in the water, so that the turbidity reached 1 degree.
RO system
The core equipment of water pump is imported and the membrane film is imported from Hydranautics in America. It is equipped with full set of clean unit. It has the features of simple structure, convenient operation and high technological level.
Silica sand filter
It can remove the suspended solids and gluten particles in the water, thus reduce the turbidity of water.
Active carbon filter
It can remove the pigment, smell and a large number of biological organisms in the water
Soften the water.
Sodium ion exchanger
It can remove calcium and magnesium ions in the water, so as to soften the water.
Reverse Osmosis
The Reverse Osmosis device is an equipment to purify the saline water with the action of pressure difference of semi-permeable membrane. It is called reverse osmosis, as it is counter to natural penetration direction. Difference materials have different osmotic pressures.
The reverse osmosis can remove more than 97% of the soluble salt and above 99% of the colloid, microorganism, particles and organic materials, becoming the best first-choice choice equipment in the engineering of modern purified water, highly purified water and space water (super-purified water). The most highlighted features are low energy consumption, no pollution, simple technique, high-quality water and convenient operation and maintenance.
UV sterilize
It uses the UV to kill some bacteria that may also pass through the reverse osmosis system.
Ozone sterilizer
Some bacteria may not be killed by UV, the sterilizer uses ozone to kill those bacteria.
Durable material
The material of water treatment plant is SUS 304.The material of ozone mixing tower tank is SUS 316, which is durable.
Company Information:
<1> Standardized workshop of total 21,000 square meters.
Different types of processing units, such as water jet cutter, plasma cutter, laser cutter, CNC machine from Taiwan chevalier & korea daewoo, ensure the precision of parts.
<2>International certification, National Certificate of equipment verification, and more than 30 invention patents are done in King machine .
Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS , COC , TUV
National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark registration, etc.
<3>The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechnical stability.
<4>Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
<5>The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers' requirements to save space.
<6>Professional installation team who can speak fluent English can help customers make benefits in a shortest time.
We control the quality of our equipments by manufacturing and machining ourselves. Pay attention to each assembly detail, and our experienced technicians monitor each key point efficiently during assembly, to ensure that the performance and appearance of each product be pefect.
Zhangjiagang King Machine Co., Ltd. is a professional manufacturer of beverage machinery in China.It is located in Zhangjiagang City very closed to Shanghai with beautiful scenery and convenient transportation.With scientific progressive conception of rapid introduction, we make our machinery cover all over the overseas market. We have been producing our goods with mature technique and first-class quality. Our products are not only marketed inland, but also exported to tens of countries such as Turkey, Poland, Uzbekistan, Malaysia, Indonesia and Egypt.Our main products have: Water filling production line, juice filling production line, carbonated drinks production line, and also aerosol filling machine, 5 Gallon bottle filling production line, and all other auxiliary equipment.Every year we will attend the exhibition, like Russia, Malaysia, Dubai, Mexico , Venezuela, Saudi Arabia and Algeria and etc, That time We always visit some local old customers and we are sure that we can offer more and better services than other supplier.We warmly welcome customers all over the world visit our manufacture,.
Our Services:
1. Well-trained & experienced staff are to answer all your inquiries in English and Chinese
2. 24 hours for engineer response (all services part 5days in customer hand by Intl' courier).
3. 12 Months guarantee and life-long technical support.
4. Your business relationship with us will be confidential to any third party.
5. Good after-sale service offered, please get back to us if you got any questions.
To help our customers build an ideal factory. With efficient cost control, we have found the right balance with our customers: diversified production range, high-class packaging forms. Meanwhile market competitivness has been improved because of the efficient operation mode of equipments.
Nearly 15 years, King Machine has provided bottling & packing equipments of liquid solutions to companies all over the world, water bottling line, juice filling line, carbonated soft drinks turnkey project, oil and soda water bottling line and labeling and packing machinery. All your different requiremts King Machine can always offer you the most professional solutions and turnkey project.
